VM is running state able to login but still lab failed Assigning Public IP to Virtual Machines

[manojb]

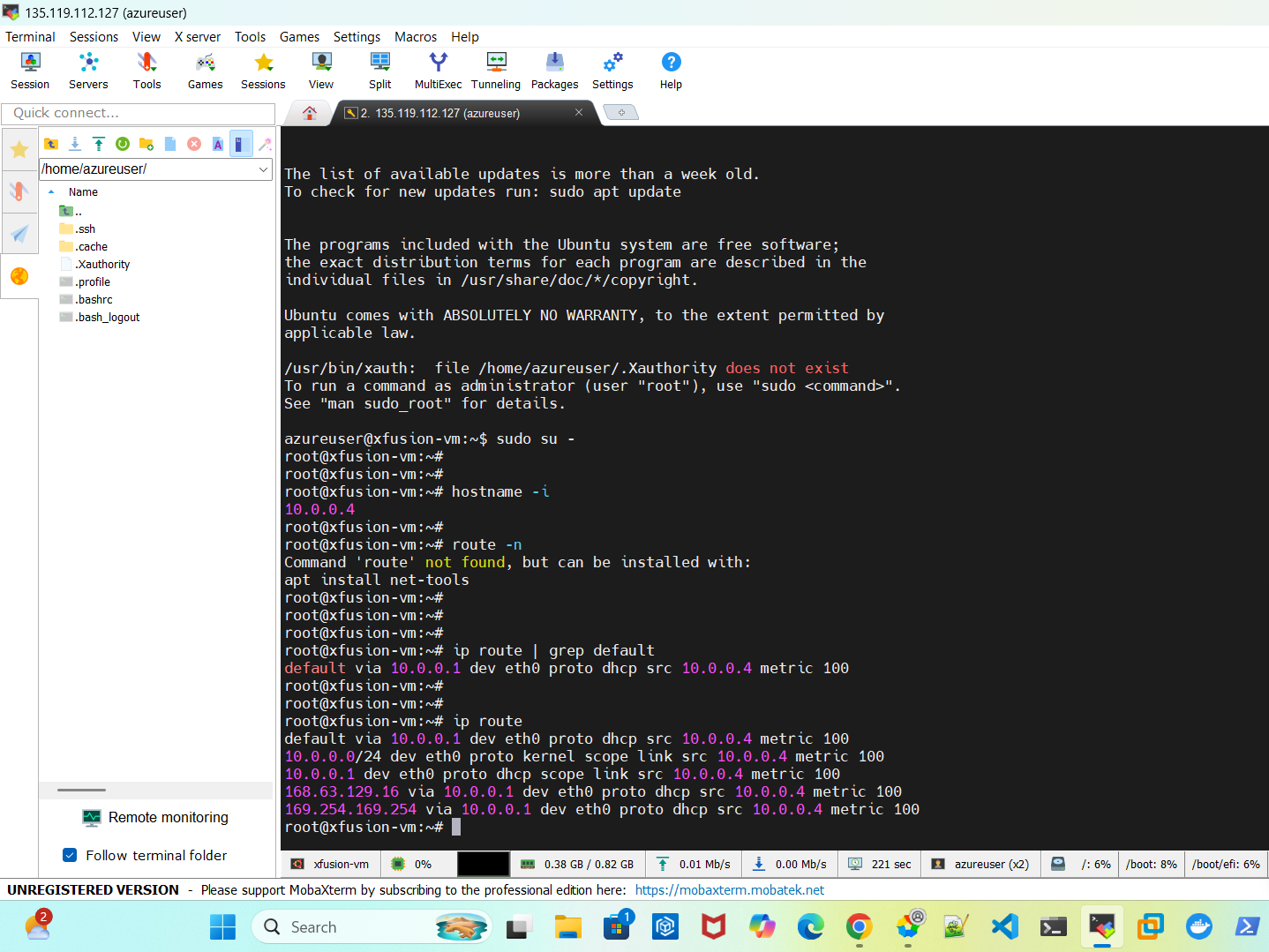

VM is running state able to ssh to the server login but still lab failed. Assigning Public IP to Virtual Machines

[Santosh_KodeKloud]

Could you please share the lab name?

[manojb]

Resolved. tried 3 times

[manojb]

Day 21: Assigning Public IP to Virtual Machines

[jvincent]

Experiencing the same issue.

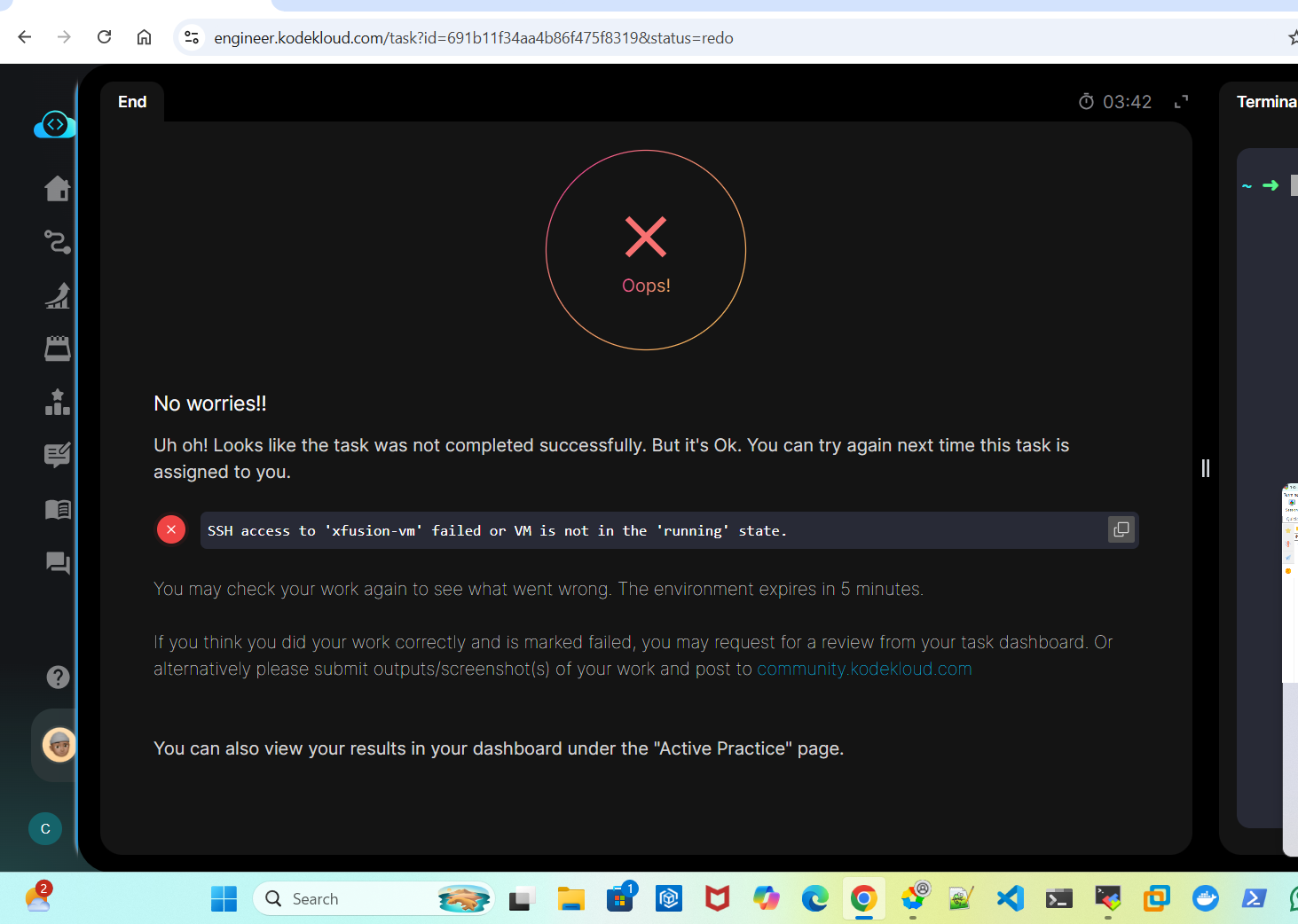

Have tried multiple times but still says VM is not in a running state.

[rob_kodekloud]

I just did the lab, and it worked for me. Can I ask you how you did the task – I can’t really tell from your image.

[jvincent]

Hi @rob_kodekloud , thank you for your response this is how I did it:

from azure-client:

ssh-keygen -t rsa -b 4096 -f .ssh/azure-vm-key
rg=$(az group list --query [].name -o tsv)

az network public-ip create -g $rg --name datacenter-pip --sku Standard --allocation-method Static --location centralus

az vm create -g $rg --size Standard_B1s --public-ip-address datacenter-pip --image Ubuntu2404 --admin-username azuser --ssh-key-values “$(cat .ssh/azure-vm-key.pub)” -n datacenter-vm --storage-sku Standard_LRS --location centralus.

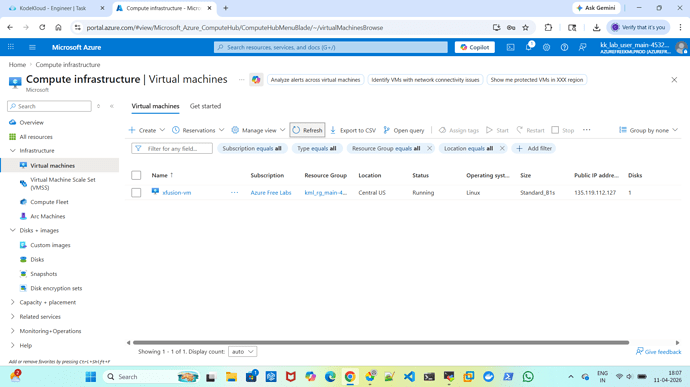

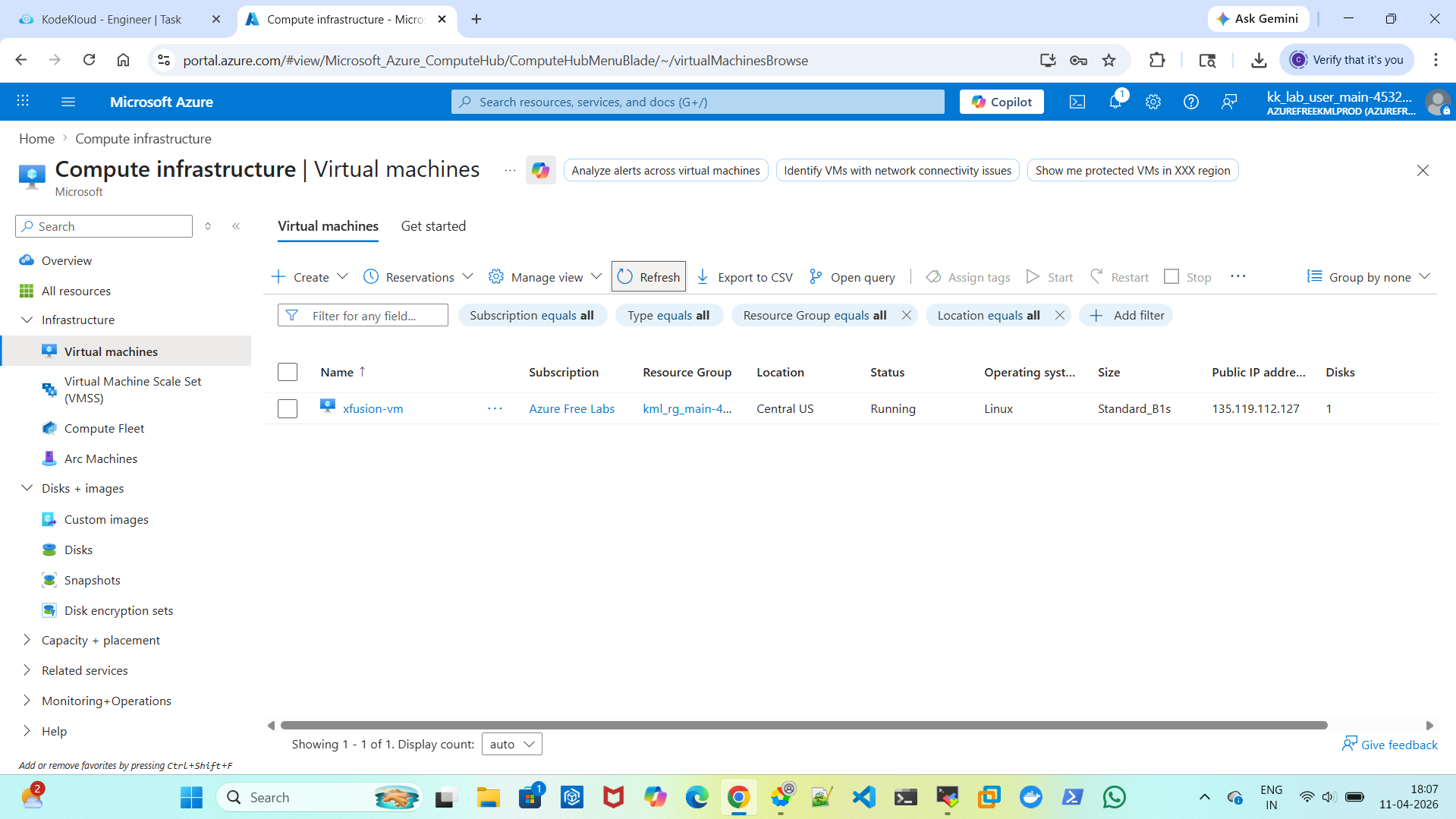

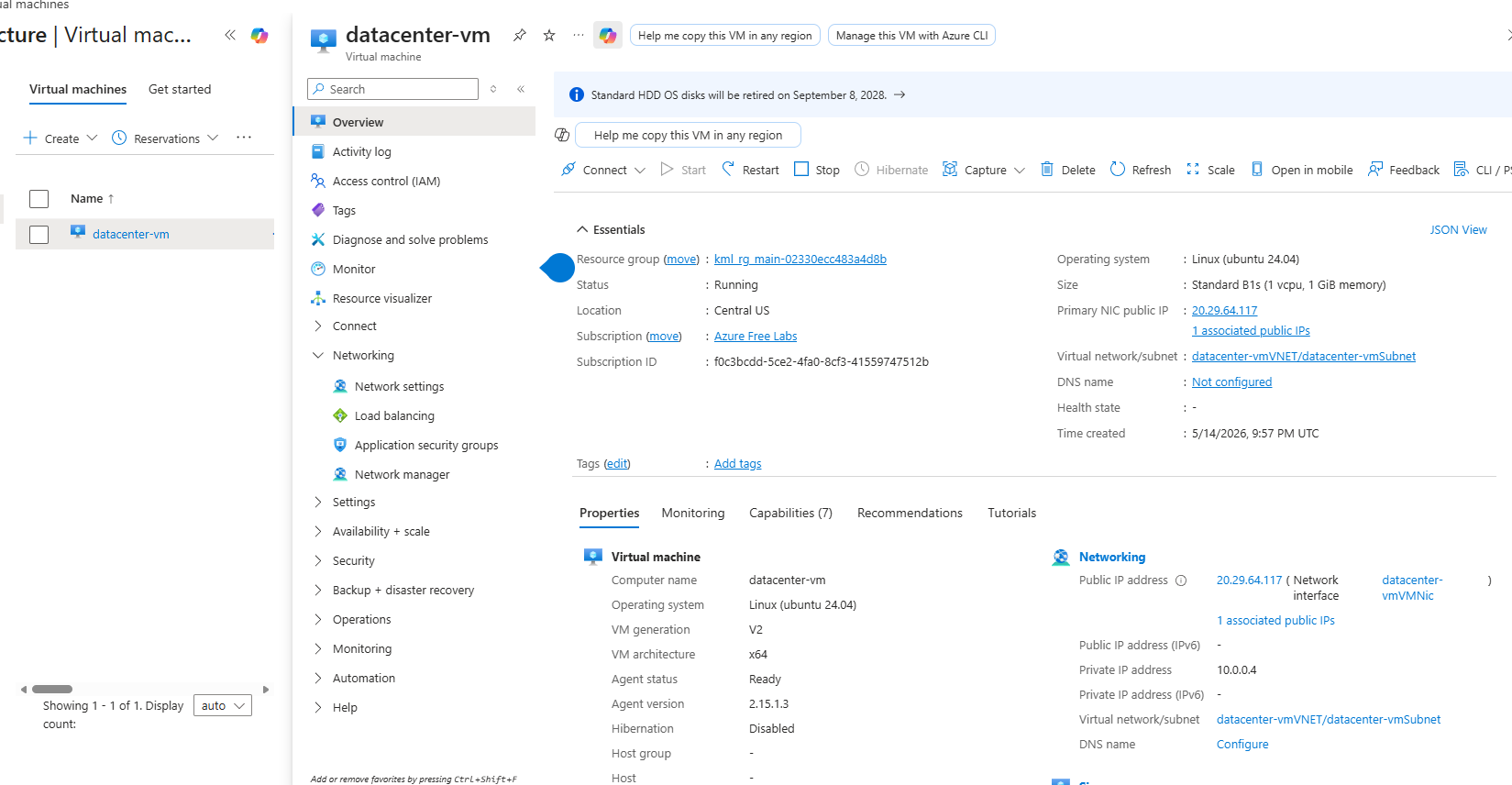

I logged in on the Portal and VM is in running state and I’m able to connect to the VM using the generated keys (from azure-client and from my personal ssh client).

[rob_kodekloud]

The grader probably expects the keyname to be id_rsa in your azure-client terminal, would be my guess.

[jvincent]

Hi @rob_kodekloud ,
Thanks for the suggestion, I have tried going with id_rsa but I’m still encountering issue…

    1   ssh-keygen -t rsa -b 4096
    2  ls -lh .ssh
    3  rg=$(az group list --query [].name -o tsv)
    4  az network public-ip create -g $rg --name datacenter-pip --sku Standard --allocation-method Static --location centralus
    5  az vm create -g $rg --size Standard_B1s --public-ip-address datacenter-pip --image Ubuntu2404 --admin-username azuser --ssh-key-values "$(cat .ssh/id_rsa.pub)" -n datacenter-vm --storage-sku Standard_LRS --location centralus
    6  ssh -i .ssh/id_rsa azuser@20.12.185.161
    7  history

[rob_kodekloud]

Which task are you actually doing here? A Day of Devops day number, or the full name of the task would suffice for this.

I’d note that “azuser” is not a user name typically used in our labs, so it would probably not allow our grader to get at your VM.

[jvincent]

Mmm okay, can you suggest a name that I can use?

For the lab details, It’s 100 Days of Cloud (Azure) Day 21: Assigning Public IP to Virtual Machines

[rob_kodekloud]

While there isn’t a set default, conventionally MS docs use “azureuser” in examples, which is what we default to as well. This solution goes by that conventional usage.

[SatyamSR71]

This helped for me. It would have been nicer to explicitly mention it on the question Or grader logic should’ve have been adjusted accordingly. It took me 5 tries and l’ve lost my streak.
