I am on the Kubernetes and GitOps module in the Jenkins Pipelines course and I have hit a wall on the second lab.
The first problem is that you MUST do an npm audit fix before anything else as the NPM audit step in the pipleline will fail.

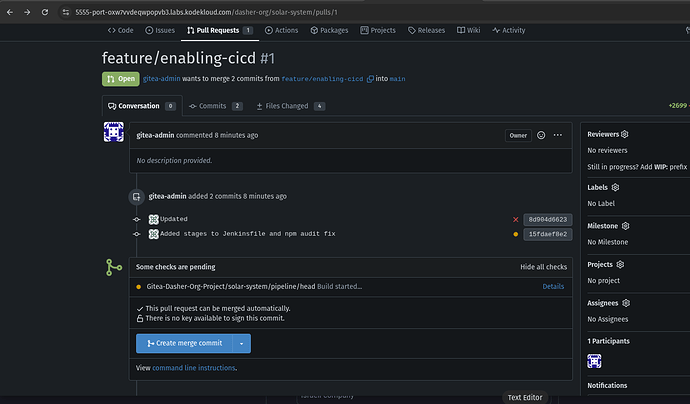

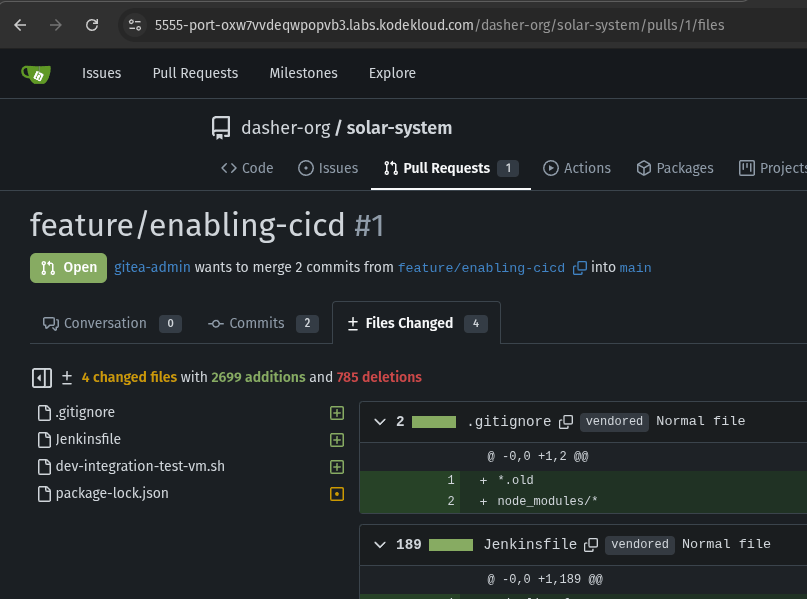

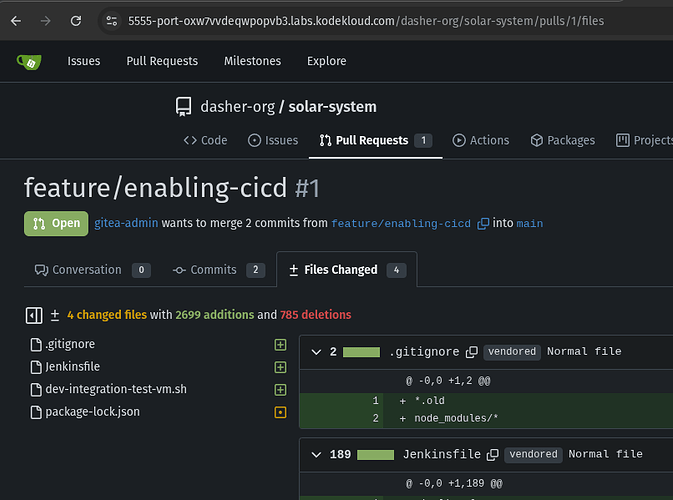

The second problem is that my Jenkinsfile, even though it resembles the solution, the when block is not properly skipping the two new steps. In a previous attempt at this same lab, when I was attempting the pull request it WAS skipping those steps. Based on AI and also google search, I replaced the block
when {
branch 'PR*'
}
with
when {
changeRequest()
|
In both cases, the above two blocks will still execute the stage even for just an update to the feature branch. It is as if the when block is doing the exact opposite of what it is supposed to do.
Here is a copy of the Jenkns file:
pipeline {
agent any
tools {
nodejs 'nodejs-22-6-0'
}
environment {
MONGO_URI = 'mongodb+srv://supercluster.d83jj.mongodb.net/superData'
MONGO_USERNAME = credentials('mongo-db-username')
MONGO_PASSWORD = credentials('mongo-db-password')
GITEA_TOKEN = credentials('gitea-api-token')
}
stages {
stage('Install Dependencies') {
steps {
sh 'npm install --no-audit'
}
}
stage('NPM Dependency Audit') {
steps {
sh 'npm audit --audit-level=critical'
}
}
stage('Unit Testing') {
steps {
sh 'npm test'
}
}
stage('Code Coverage') {
steps {
catchError(buildResult: 'SUCCESS', message: 'Oops! it will be fixed in future releases', stageResult: 'UNSTABLE') {
sh 'npm run coverage'
}
}
}
stage('Build Docker Image') {
steps {
script {
sh 'docker build -t kodekloud-hub:5000/solar-system:${GIT_COMMIT} .'
}
}
}
stage('Trivy Scan') {
steps {
script {
sh '''
trivy image kodekloud-hub:5000/solar-system:${GIT_COMMIT} \
--severity CRITICAL \
--exit-code 1 \
--format json -o trivy-image-CRITICAL-results.json
'''
}
}
}
stage('Publish Image - DockerHub') {
steps {
script {
withDockerRegistry([credentialsId: 'docker-hub-credentials', url: 'http://kodekloud-hub:5000']) {
sh 'docker push kodekloud-hub:5000/solar-system:$GIT_COMMIT'
}
}
}
}
stage('Localstack - AWS S3') {
steps {
withAWS(credentials: 'localstack-aws-credentials', endpointUrl: 'http://localhost:4566', region: 'us-east-1') {
sh '''
ls -ltr
mkdir reports-$BUILD_ID
cp -rf coverage/ reports-$BUILD_ID/
cp test-results.xml trivy*.* reports-$BUILD_ID/
ls -ltr reports-$BUILD_ID/
'''
s3Upload(
file: "reports-$BUILD_ID",
bucket: 'solar-system-jenkins-reports-bucket',
path: "jenkins-$BUILD_ID/",
pathStyleAccessEnabled: true
)
}
}
}
stage('Deploy to VM') {
when {
expression { return env.GIT_BRANCH ==~ /feature\/.*/ }
}
steps {
script {
sshagent(credentials: ['vm-dev-deploy-instance']) {
sh '''
ssh -o StrictHostKeyChecking=no root@node01 "
if sudo docker ps -a | grep -q 'solar-system'; then
echo 'Container found. Stopping...'
sudo docker stop 'solar-system' && sudo docker rm 'solar-system'
echo 'Container stopped and removed.'
fi
sudo docker run --name solar-system \
-e MONGO_URI=$MONGO_URI \
-e MONGO_USERNAME=$MONGO_USERNAME \
-e MONGO_PASSWORD=$MONGO_PASSWORD \
-p 3000:3000 -d kodekloud-hub:5000/solar-system:$GIT_COMMIT
"
'''
}
}
}
}
stage('Integration Testing - VM') {
when {
expression { return env.GIT_BRANCH ==~ /feature\/.*/ }
}
steps {
sh 'bash dev-integration-test-vm.sh'
}
}
stage('Update and Commit Image Tag') {
steps {
when {
changeRequest()
}
sh 'git clone -b main https://5555-port-mgof5rk5mt2dsfyv.labs.kodekloud.com/dasher-org/solar-system-gitops-argocd'
dir("solar-system-gitops-argocd/kubernetes") {
sh '''
git checkout main
git checkout -b feature-$BUILD_ID
sed -i "s#kodekloud:5000.*#kodekloud-hub:5000/solar-system:$GIT_COMMIT#g" deployment.yml
cat deployment.yml
git config user.name "Jenkins CI"
git config --global user.email "[email protected]"
git remote set-url origin http://[email protected]//dasher-org/solar-system-gitops-argocd
git add .
git commit -am "Updated docker image"
git push -u origin feature-$BUILD_ID
'''
}
}
}
stage('Kubernetes Deployment - Raise PR') {
when {
changeRequest()
}
steps {
sh """
curl -X 'POST' \
'https://5555-port-mgof5rk5mt2dsfyv.labs.kodekloud.com/api/v1/repos/dasher-org/solar-system-gitops-argocd/pulls' \
-H 'accept: application/json' \
-H 'Authorization: token $GITEA_TOKEN' \
-H 'Content-Type: application/json' \
-d '{
"assignee": "gitea-admin",
"assignees": [
"gitea-admin"
],
"base": "main",
"body": "Updated docker image in deployment manifest",
"head": "feature-$BUILD_ID",
"title": "Updated Docker Image"
}'
"""
}
}
}
post {
always {
script {
if (fileExists('solar-system-gitops-argocd')) {
sh 'rm -rf solar-system-gitops-argocd'
}
}
junit allowEmptyResults: true, stdioRetention: '', testResults: 'test-results.xml'
publishHTML([allowMissing: true, alwaysLinkToLastBuild: true, keepAll: true, reportDir: 'coverage/lcov-report', reportFiles: 'index.html', reportName: 'Code Coverage HTML Report', reportTitles: '', useWrapperFileDirectly: true])
sh 'trivy convert --format template --template "/usr/local/share/trivy/templates/html.tpl" --output trivy-image-CRITICAL-results.html trivy-image-CRITICAL-results.json'
publishHTML([allowMissing: true, alwaysLinkToLastBuild: true, keepAll: true, reportDir: "./", reportFiles: "trivy-image-CRITICAL-results.html", reportName: "Trivy Image Critical Vul Report", reportTitles: "", useWrapperFileDirectly: true])
}
}
}
This is my 3rd time trying to get this lab done!
