Question in Mock exam-3 Q.7

Kubernetes
#1

Hi there,
Regarding below question in mock exam

#########
kubectl config use-context cluster1

There is an existing persistent volume called `orange-pv-cka13-trb`. A persistent volume claim called `orange-pvc-cka13-trb` is created to claim storage from `orange-pv-cka13-trb`.
However, this PVC is stuck in a `Pending` state. As of now, there is no data in the volume.
Troubleshoot and fix this issue, making sure that `orange-pvc-cka13-trb` PVC is in `Bound` state.
#########

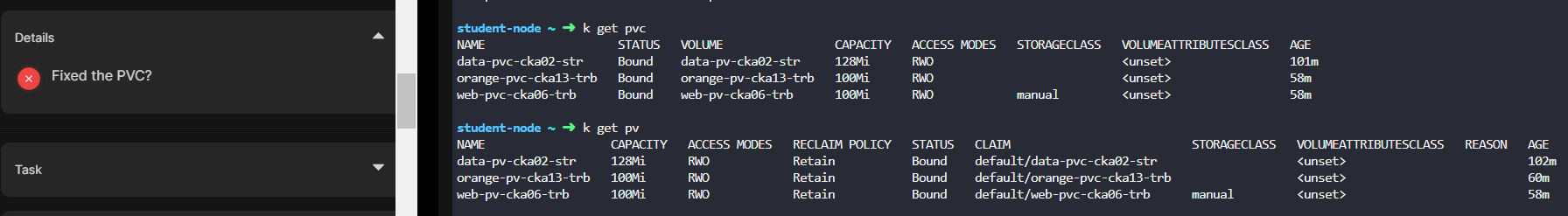

pvc orange-pvc-cka13-trb modified correctly and it bound to PV as below but in result it is still marked as incorrect: -

student-node ~ ➜  kubectl get pvc orange-pvc-cka13-trb
NAME                   STATUS   VOLUME                CAPACITY   ACCESS MODES   STORAGECLASS   AGE
orange-pvc-cka13-trb   Bound    orange-pv-cka13-trb   100Mi      RWO                           84m

Just need more detail how the answer is evaluated?
#2

There are a couple of approaches to solving this one. First thing is to see if the PVC “knows” why it can’t bind. You can look at events for this, either by doing k describe pvc orange-pvc-cka13-trb, or by checking the namespace’s event, as I do here:

student-node ~ ➜  k get ev | grep pvc
6s          Warning   VolumeMismatch            persistentvolumeclaim/orange-pvc-cka13-trb      Cannot bind to requested volume "orange-pv-cka13-trb": requested PV is too small

The key bit: “orange-pv-cka13-trb”: requested PV is too small. So it looks like you need to reduce the request size down from 150Mi down to whatever that PV has available.

#3

Hi Rob, thanks for details.
In my case pvc was bound to pv as per shared output, but still answer in mock exam result is considered as wrong. Hence i requested more details how the answer is evaluated for mock exam?

#4

The grader is something of a black box; I don’t really know. Did you adjust the size of the PVC? This would certainly be part of what it would be looking for.
