In the below question, I followed the steps as suggested in answer, modified PVC storage to 100Mi from 150Mi, still it considered wrong.
please help
Each of these questions has an associated SECTION e.g.
In which section was this question?

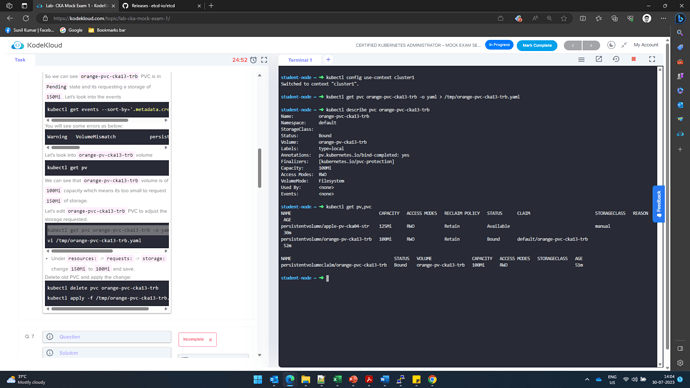

This would be difficult to tell, but screenshot tells everything
I finally located this question. The section I asked you for is TROUBLESHOOTING
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
labels:
type: local
name: orange-pvc-cka13-trb
namespace: default
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 100Mi
volumeMode: Filesystem
And you recreated it with exactly the YAML I posted?
Actually Without labels, will try that but my follow-up questions: a) labels are mandatory? b) and do we need to call out default namespace as well?
And Just FYI, whatever is not working right now, worked perfectly fine [my same code] in some attempts, so it’s a intermittent, Any thoughts?
The labels should not matter, however the namespace does matter.
If your namespace setting for current context on that cluster was something other than default (e.g. from a previous question), and you create it without namespace, then the PVC will still bind, but the PVC would be in the wrong namespace and the question would be marked incorrect.
Remember that a persistent volume is non-namespaced. It can be bound by a PVC in any namespace.
Thanks for explaining, But how come my namespace setting from previous question is impacting my next question., I am really not sure what setting/command you are reffering to. please help
As I said, whatever is not working right now, worked perfectly fine [my same code] in some attempts, so it’s a intermittent, Any thoughts?
Say you ran a command like
kubectl config set-context --current --namespace blue
for a previous question that uses cluster1
If you then come to this question and create a PVC without namespace in the YAML or without doing
kubectl config set-context --current --namespace default
then the PVC would create and bind in the blue namespace, which is not what the question wants - even though the PVC shows as bound. It would be bound in the wrong namespace.
Should this question be scored wrong again, then in the few minutes you have before the lab ends, run exactly the following to verify the PVC is in the right place
kubectl config use-context cluster1
kubectl get pvc -n default orange-pvc-cka13-trb
If you get no result, then it is in the wrong namespace.
If it does come back with a result and the question is still marked incorrect, then post it here. We don’t need a full screenshot - just copy the text including the commands you ran and the output from the terminal
and paste it into a code block like this
Here is the Full YAMLs of both PV and PVC:
student-node ~ âžś kubectl get pv,pvc -o yaml
apiVersion: v1
items:
- apiVersion: v1
kind: PersistentVolume
metadata:
annotations:
pv.kubernetes.io/bound-by-controller: “yes”
creationTimestamp: “2023-08-08T10:20:34Z”
finalizers:-
kubernetes.io/pv-protection
labels:
type: local
name: orange-pv-cka13-trb
resourceVersion: “2790”
uid: de38a63a-0ff8-4b09-ad90-eb125055a77f
spec:
accessModes: - ReadWriteOnce
capacity:
storage: 100Mi
claimRef:
apiVersion: v1
kind: PersistentVolumeClaim
name: orange-pvc-cka13-trb
namespace: default
resourceVersion: “2788”
uid: e0dcad2f-df87-4833-a050-c9a77c6c9e8b
hostPath:
path: /mnt/orange-pv-cka13-trb
type: “”
persistentVolumeReclaimPolicy: Retain
volumeMode: Filesystem
status:
phase: Bound
-
kubernetes.io/pv-protection
- apiVersion: v1
kind: PersistentVolumeClaim
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{“apiVersion”:“v1”,“kind”:“PersistentVolumeClaim”,“metadata”:{“annotations”:{},“creationTimestamp”:“2023-08-08T10:20:35Z”,“finalizers”:[“kubernetes.io/pvc-protection"],“labels”:{“type”:“local”},“name”:“orange-pvc-cka13-trb”,“namespace”:“default”,“resourceVersion”:“2429”,“uid”:“c2ef7f90-3e20-4c86-bc94-2bc2c58ae125”},“spec”:{“accessModes”:[“ReadWriteOnce”],“resources”:{“requests”:{“storage”:“100Mi”}},“volumeMode”:“Filesystem”,“volumeName”:“orange-pv-cka13-trb”},“status”:{“phase”:"Pending”}}
pv.kubernetes.io/bind-completed: “yes”
creationTimestamp: “2023-08-08T10:24:19Z”
finalizers:-
kubernetes.io/pvc-protection
labels:
type: local
name: orange-pvc-cka13-trb
namespace: default
resourceVersion: “2807”
uid: e0dcad2f-df87-4833-a050-c9a77c6c9e8b
spec:
accessModes: - ReadWriteOnce
resources:
requests:
storage: 100Mi
volumeMode: Filesystem
volumeName: orange-pv-cka13-trb
status:
accessModes: - ReadWriteOnce
capacity:
storage: 100Mi
phase: Bound
kind: List
metadata:
resourceVersion: “”
selfLink: “”
-
kubernetes.io/pvc-protection
PVC came in bound status,
Also, Just FYI, Previously and as well as currently, I have not created any new YAML, Steps that I followed are:
- edited pvc 150 - 100 Mi
- yaml file saved in /tmp/
- Ran newly created yaml from /tmp location.
So that Namespace: default is already there, Nethier I removed, Nor I modified/Added.
Still Answer considered wrong.
Mock Test 5, Question 7
Just testing the question and it’s work fine
Step to follow :
- Edit pvc and modify capacity from 150 to 100
kubectl edit pvc orange-pvc-cka13-trb
- Save edit a new file is create on /tmp
- Delete existed pvc
kubectl delete pvc orange-pvc-cka13-trb
-Create a new pvc from the file on /tmp
kubectl create -f /tmp/kubectl-edit-1733228050.yaml
Normally, he should work
If the issue persists, please share the pv and pvc using codeblock on text format it’s not readable
Regard
Thansk @mmkmou_KodeKloud
I did follow - steps exactly as yours, but in my case, it considered wrong when I ended exam.
Also, It did considered Right in one of my attempts, so I am unsure what is happening.
1 Like
