Need help : in LAB solution why service type = clusterip

Kubernetes
#1

https://learn.kodekloud.com/user/courses/helm-for-beginners/module/b90a4aa4-31b5-43d3-a7aa-383d48c50db0/lesson/ef6d5919-cd28-4d13-8298-1f3f1961f07e

Lab: Writing a helm chart

Create a helm chart at /root/webapp-nginx for this application by converting the deployment and service definition files into templates.

Create a chart first and then move the definition files into the templates directory.

  1. The deployment and service objects should be named in the format RELEASE-NAME-nginx.
  2. Set apiVersion for the chart to v2.
  3. Name the chart webapp-nginx.
  4. Set version number to 0.1.1.
  5. Set appVersion to 1.16.0.
  6. Values file has a variable image set by default so make changes for an image nginx:1.16.0.
  7. Value of image variable to be used in deployment as the image name for the container.

In solution
The values.yaml file should be look like as follows:

replicaCount: 1

image:
  repository: nginx
  tag: 1.16.0

service:
  type: ClusterIP
  port: 80

Why service type will cluster ip when given service is NODEPORT

controlplane ~/webapp-nginx/templates ➜ cat /root/webapp/service.yaml
apiVersion: v1
kind: Service
metadata:
name: nginx
spec:
type: NodePort
ports:
- port: 80
targetPort: http
protocol: TCP
nodePort: 30080
name: http
selector:
app: nginx

#2

Yup!
That’s a bug in the solution for the Service type; there is no requirement for updating the Service type.
I’ll inform the team to fix this.

However, if we carry out the task as defined in the requirements, the task results in a pass.

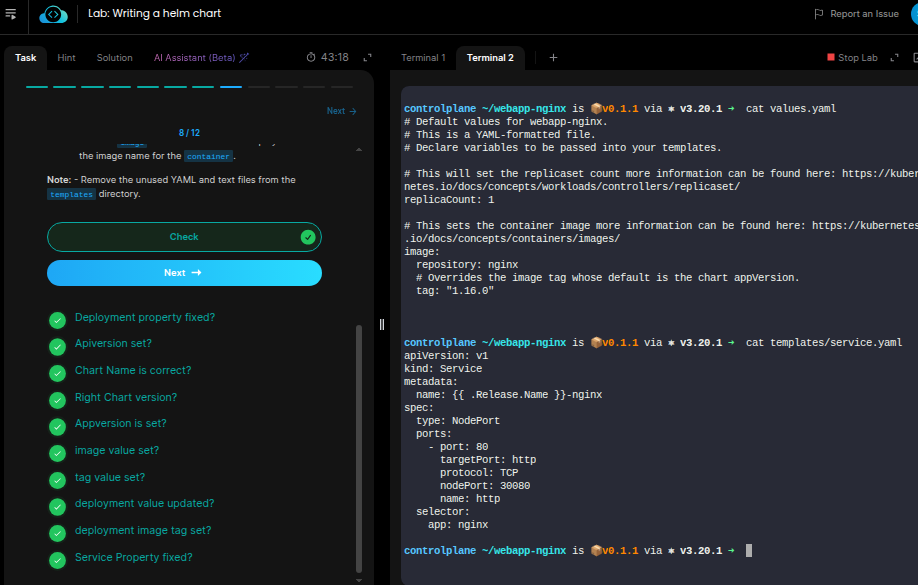

helm
helm918×585 72.3 KB

#3

I am a bit confused , As i am not getting confidence on helm :slight_smile:
that is other topic, Comming to my concern

The deployment name can be modified in deployment.yaml file as:

  name: {{ .Release.Name }}-nginx

The container section in the deployment.yaml can be modified as:

   containers:
      - name: {{ .Values.image.repository }}
        image: {{ .Values.image.repository }}:{{ .Values.image.tag }}

The service name in the service.yaml should be modified as:

  name: {{ .Release.Name }}-nginx

My concern is why imagePullPolicy in deployment no need the change?
plus why service name need to be name: {{ .Release.Name }}-nginx

Let me share my solution

controlplane ~/webapp-nginx is 📦 v0.1.1 via ⎈ v3.20.1 ➜  cat templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{.Release.Name}}-nginx
spec:
  selector:
    matchLabels:
      app: {{.Release.Name}}
  template:
    metadata:
      labels:
        app: {{.Release.Name}}
    spec:
      containers:
        - name: {{.Values.image.repository}}
          image: {{.Values.image.repository}}:{{.Values.image.tag}}
          imagePullPolicy: {{.Values.image.pullPolicy}}
          ports:
            - name: http
              containerPort: 80
              protocol: TCP

controlplane ~/webapp-nginx is 📦 v0.1.1 via ⎈ v3.20.1 ➜  cat templates/service.yaml
apiVersion: v1
kind: Service
metadata:
  name: {{.Release.Name}}
spec:
  type: NodePort
  ports:
    - port: 80
      targetPort: http
      protocol: TCP
      name: http
  selector:
    app: {{.Release.Name}}
#4

https://learn.kodekloud.com/user/courses/helm-for-beginners/module/b90a4aa4-31b5-43d3-a7aa-383d48c50db0/lesson/ef6d5919-cd28-4d13-8298-1f3f1961f07e

Lab: Writing a helm chart

Create a helm chart at /root/webapp-nginx for this application by converting the deployment and service definition files into templates.

Create a chart first and then move the definition files into the templates directory.

  1. The deployment and service objects should be named in the format RELEASE-NAME-nginx.
  2. Set apiVersion for the chart to v2.
  3. Name the chart webapp-nginx.
  4. Set version number to 0.1.1.
  5. Set appVersion to 1.16.0.
  6. Values file has a variable image set by default so make changes for an image nginx:1.16.0.
  7. Value of image variable to be used in deployment as the image name for the container.

In solution
The values.yaml file should be look like as follows:

replicaCount: 1

image:
  repository: nginx
  tag: 1.16.0

service:
  type: ClusterIP
  port: 80

Why service type will cluster ip when given service is NODEPORT

controlplane ~/webapp-nginx/templates ➜ cat /root/webapp/service.yaml
apiVersion: v1
kind: Service
metadata:
name: nginx
spec:
type: NodePort
ports:
- port: 80
targetPort: http
protocol: TCP
nodePort: 30080
name: http
selector:
app: nginx

#5

Because labels, imagePullPolicy, and selectors on Deployment and Service are not the tasks in question.
You can templatize them as in your yaml manifests; there’s nothing wrong with it. But that’s not part of the requirement for this lab.

#6

I am a bit confused , As i am not getting confidence on helm :slight_smile:
that is other topic, Comming to my concern

The deployment name can be modified in deployment.yaml file as:

  name: {{ .Release.Name }}-nginx

The container section in the deployment.yaml can be modified as:

   containers:
      - name: {{ .Values.image.repository }}
        image: {{ .Values.image.repository }}:{{ .Values.image.tag }}

The service name in the service.yaml should be modified as:

  name: {{ .Release.Name }}-nginx

My concern is why imagePullPolicy in deployment no need the change?
plus why service name need to be name: {{ .Release.Name }}-nginx

Let me share my solution

controlplane ~/webapp-nginx is :package: v0.1.1 via ⎈ v3.20.1 ➜ cat templates/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: {{.Release.Name}}-nginx
spec:
selector:
matchLabels:
app: {{.Release.Name}}
template:
metadata:
labels:
app: {{.Release.Name}}
spec:
containers:
- name: {{.Values.image.repository}}
image: {{.Values.image.repsitory}}:{{.Values.image.tag}}
imagePullPolicy: {{.Values.image.pullPolicy}}
ports:
- name: http
containerPort: 80
protocol: TCP

controlplane ~/webapp-nginx is :package: v0.1.1 via ⎈ v3.20.1 ➜ cat templates/service.yaml
apiVersion: v1
kind: Service
metadata:
name: {{.Release.Name}}
spec:
type: NodePort
ports:
- port: 80
targetPort: http
protocol: TCP
name: http
selector:
app: {{.Release.Name}}
