Managing CI/CD Pipelines Using Terraform

KodeKloud Engineer
#1

Dear Team,

Course Name: KodeKloud Engineer

Level 4: Managing CI/CD Pipelines Using Terraform

I recently completed the “Managing CI/CD Pipelines Using Terraform” task, but it was marked as failed due to “main.tf symlink is incorrect in dev”. I belive everything was executed correctly. Attached Screenshot for reference. Kindly review and let me know if there’s anything I may have missed.

My Soultion:

script.sh

#!/bin/bash
set -e

mkdir -p /home/bob/terraform/env/dev
mkdir -p /home/bob/terraform/env/prod
mkdir -p /home/bob/terraform/modules/dynamodb
mkdir -p /home/bob/terraform/modules/secretsmanager
mkdir -p /home/bob/terraform/modules/elasticsearch
mkdir -p /home/bob/terraform/shared

Relative symlinks for shared files

Absolute symlinks for shared files in dev

ln -sf /home/bob/terraform/shared/main.tf /home/bob/terraform/env/dev/main.tf
ln -sf /home/bob/terraform/shared/variables.tf /home/bob/terraform/env/dev/variables.tf
ln -sf /home/bob/terraform/shared/outputs.tf /home/bob/terraform/env/dev/outputs.tf

Absolute symlinks for shared files in prod

ln -sf /home/bob/terraform/shared/main.tf /home/bob/terraform/env/prod/main.tf
ln -sf /home/bob/terraform/shared/variables.tf /home/bob/terraform/env/prod/variables.tf
ln -sf /home/bob/terraform/shared/outputs.tf /home/bob/terraform/env/prod/outputs.tf

Root symlinks (absolute is fine here)

ln -sf /home/bob/terraform/shared/main.tf /home/bob/terraform/main.tf
ln -sf /home/bob/terraform/shared/variables.tf /home/bob/terraform/variables.tf
ln -sf /home/bob/terraform/shared/outputs.tf /home/bob/terraform/outputs.tf

Create dev.tfvars and prod.tfvars if missing

cat > /home/bob/terraform/env/dev/dev.tfvars <<EOF
KKE_ENV = “dev”
KKE_DYNAMODB_TABLE_NAME = “datacenter-dev-table”
KKE_SECRET_NAME = “datacenter-dev-secret”
KKE_SECRET_VALUE = “datacenter-dev-value”
KKE_ELASTICSEARCH_DOMAIN = “datacenter-dev-es”
EOF

cat > /home/bob/terraform/env/prod/prod.tfvars <<EOF
KKE_ENV = “prod”
KKE_DYNAMODB_TABLE_NAME = “datacenter-prod-table”
KKE_SECRET_NAME = “datacenter-prod-secret”
KKE_SECRET_VALUE = “datacenter-prod-value”
KKE_ELASTICSEARCH_DOMAIN = “datacenter-prod-es”
EOF

Create LocalStack buckets for state backend

aws --endpoint-url http://aws:4566 s3 mb s3://datacenter-dev-terraform-state || true
aws --endpoint-url http://aws:4566 s3 mb s3://datacenter-prod-terraform-state || true

modules/dynamodb/main.tf
resource “aws_dynamodb_table” “this” {
name = var.KKE_DYNAMODB_TABLE_NAME
billing_mode = “PAY_PER_REQUEST”

hash_key = “id”

attribute {
name = “id”
type = “S”
}
}

modules/dynamodb/variables.tf
variable “KKE_DYNAMODB_TABLE_NAME” {
type = string
}

modules/dynamodb/outputs.tf
output “table_name” {
value = aws_dynamodb_table.this.name
}

modules/secretsmanager/main.tf

resource “aws_secretsmanager_secret” “this” {
name = var.KKE_SECRET_NAME
}

resource “aws_secretsmanager_secret_version” “this” {
secret_id = aws_secretsmanager_secret.this.id
secret_string = var.KKE_SECRET_VALUE
}

modules/secretsmanager/variables.tf
variable “KKE_SECRET_NAME” {
type = string
}

variable “KKE_SECRET_VALUE” {
type = string
}

modules/secretsmanager/outputs.tf

output “secret_arn” {
value = aws_secretsmanager_secret.this.arn
}

modules/elasticsearch/main.tf

resource “aws_elasticsearch_domain” “this” {
domain_name = var.KKE_ELASTICSEARCH_DOMAIN
elasticsearch_version = “7.10”

cluster_config {
instance_type = “t3.small.elasticsearch”
}

ebs_options {
ebs_enabled = true
volume_size = 10
}
}

modules/elasticsearch/variables.tf

variable “KKE_ELASTICSEARCH_DOMAIN” {
type = string
}

modules/elasticsearch/outputs.tf
output “endpoint” {
value = aws_elasticsearch_domain.this.endpoint
}

shared/variables.tf

variable “KKE_ENV” {}
variable “KKE_DYNAMODB_TABLE_NAME” {}
variable “KKE_SECRET_NAME” {}
variable “KKE_SECRET_VALUE” {}
variable “KKE_ELASTICSEARCH_DOMAIN” {}

shared/main.tf

module “dynamodb” {
source = “/home/bob/terraform/modules/dynamodb”
KKE_DYNAMODB_TABLE_NAME = var.KKE_DYNAMODB_TABLE_NAME
}

module “secretsmanager” {
source = “/home/bob/terraform/modules/secretsmanager”
KKE_SECRET_NAME = var.KKE_SECRET_NAME
KKE_SECRET_VALUE = var.KKE_SECRET_VALUE
}

module “elasticsearch” {
source = “/home/bob/terraform/modules/elasticsearch”
KKE_ELASTICSEARCH_DOMAIN = var.KKE_ELASTICSEARCH_DOMAIN
}

shared/outputs.tf

output “kke_dynamodb_table_name” {
value = module.dynamodb.table_name
}

output “kke_secret_arn” {
value = module.secretsmanager.secret_arn
}

output “kke_elasticsearch_domain_endpoint” {
value = module.elasticsearch.endpoint
}

env/dev/terraform_config.tf
terraform {
backend “local” {
path = “terraform.tfstate”
}
}

env/prod/terraform_config.tf

terraform {
backend “local” {
path = “terraform.tfstate”
}
}

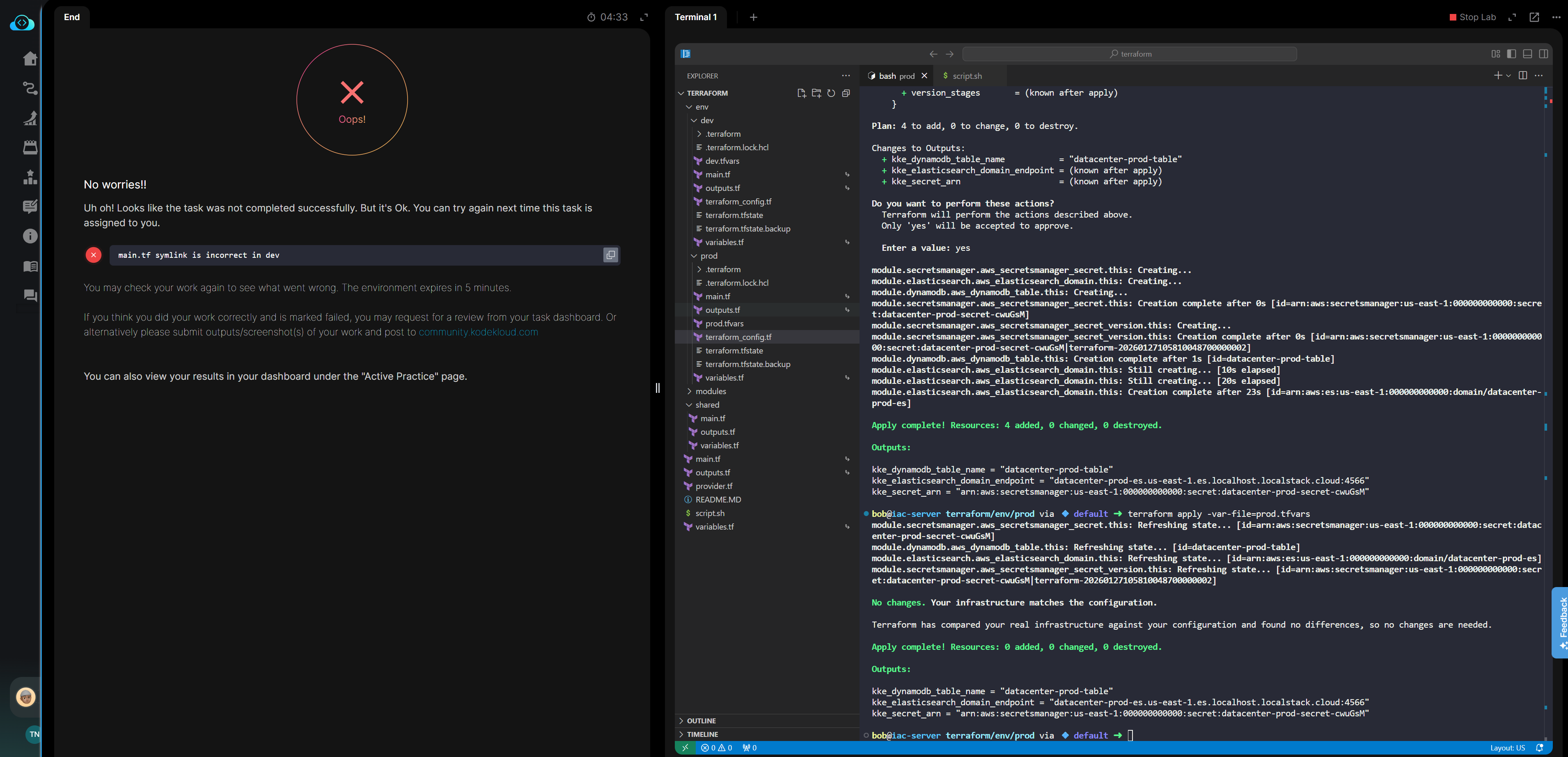

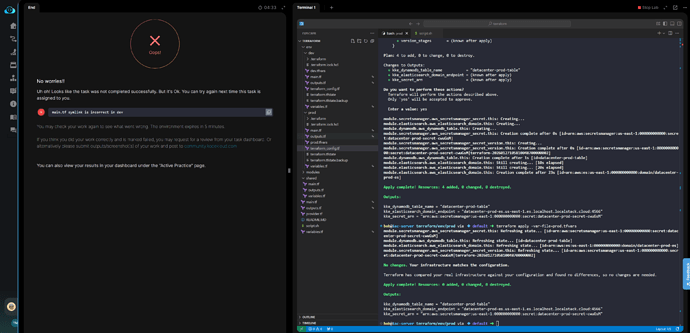

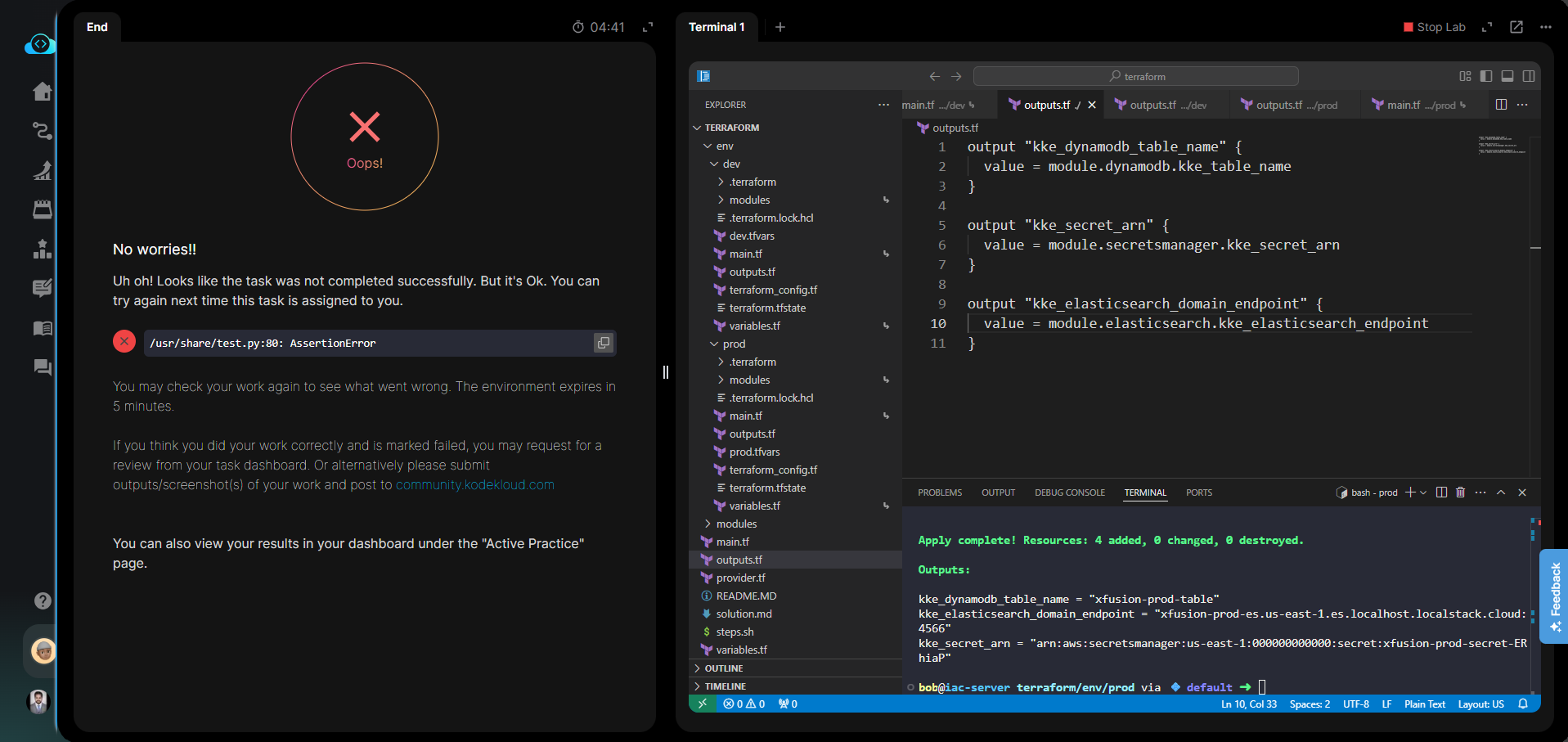

image3820×1844 498 KB

#2

Hi @tamilzhnationalist

I noticed you created the Terraform files in the shared folder. Please try again and follow the structure shown below.


Link command:

ln -s /home/bob/terraform/main.tf main.tf
ln -s /home/bob/terraform/variables.tf variables.tf
ln -s /home/bob/terraform/outputs.tf outputs.tf
ln -s /home/bob/terraform/modules/ modules
#3

Hi @raymond.baoly, I am not succeeding in keeping the terraform state for both dev and prod environments when I apply the configuration after the other.

In the terraform_config.tf, I have this like @tamilzhnationalist mentioned above

env/dev/terraform_config.tf

terraform {
backend “local” {
path = “terraform.tfstate”
}
}

env/prod/terraform_config.tf

terraform {
backend “local” {
path = “terraform.tfstate”
}
}

But it is not working. I am quite lost to be honest.

I thank you in advance for your support.

Best regards,
Nathan

#4

Hi @Nathan92

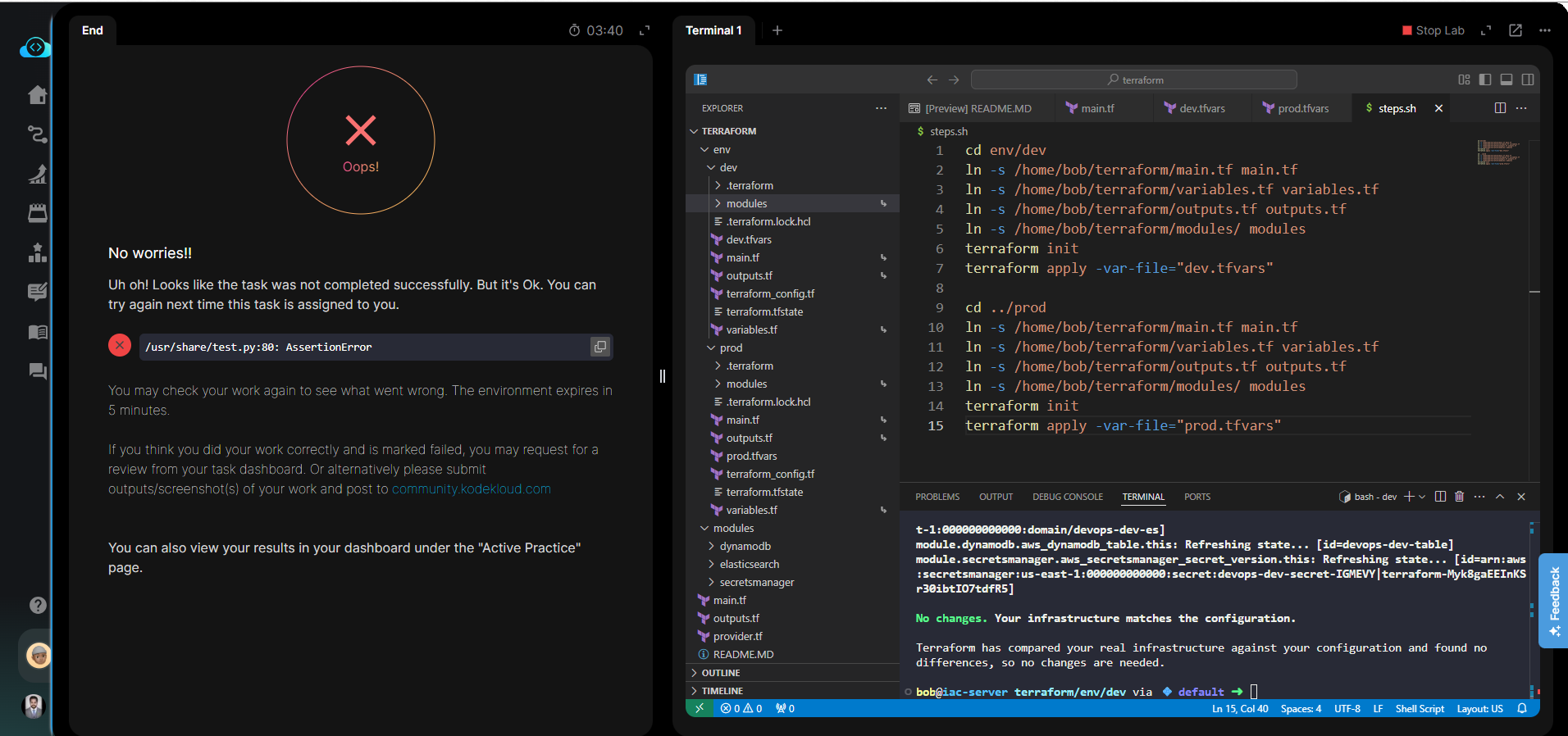

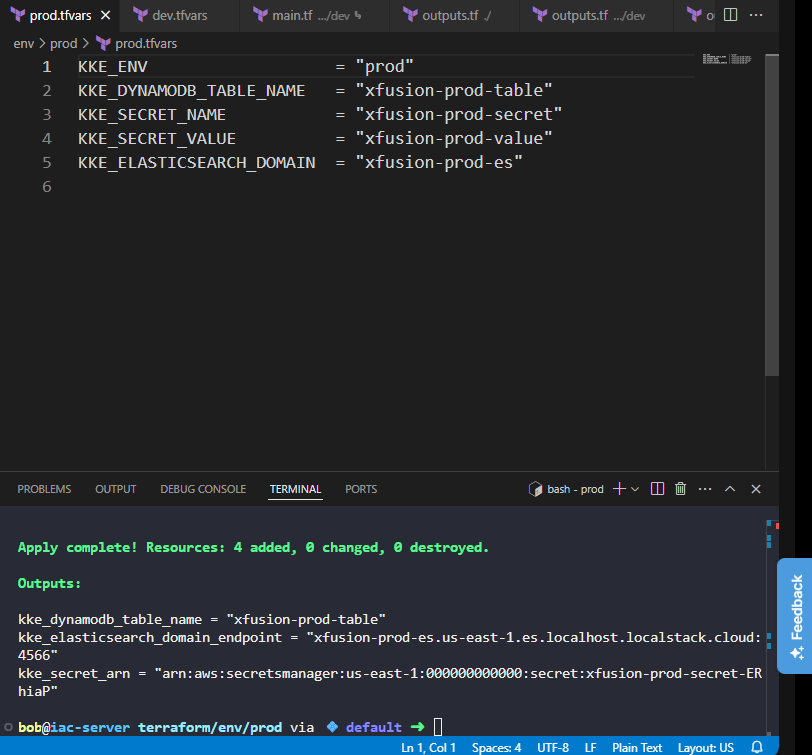

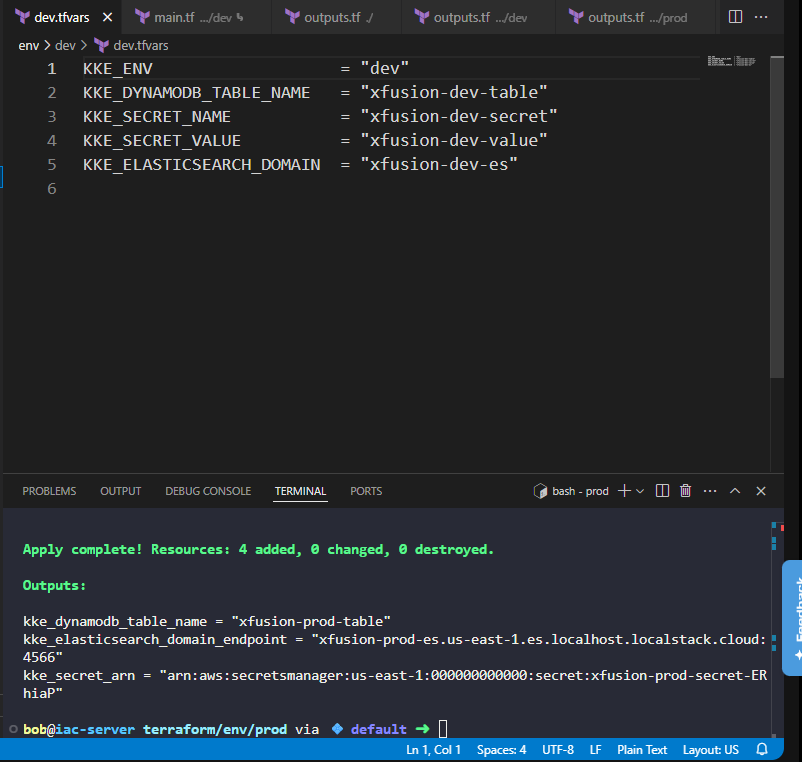

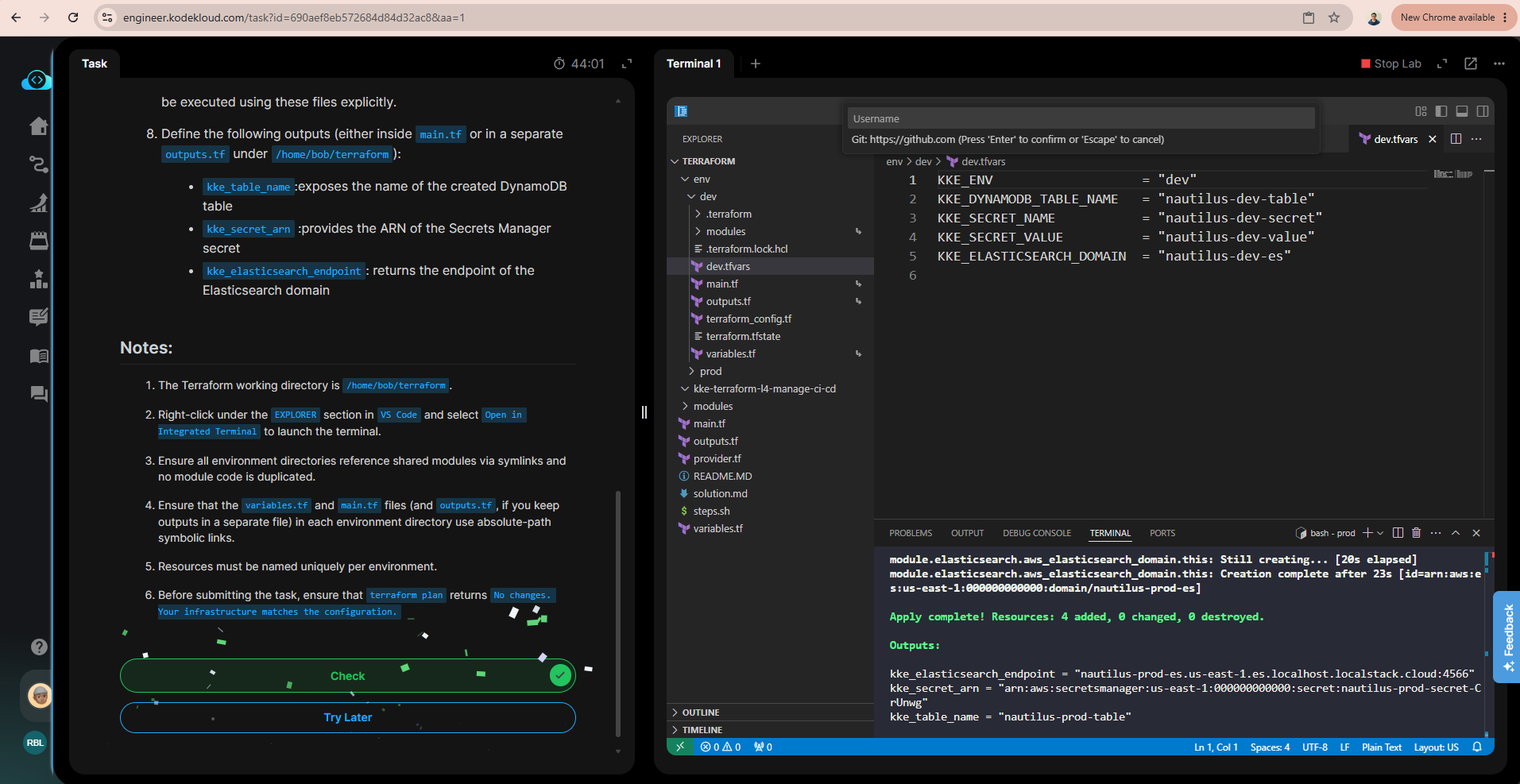

Here is the code I used to complete the task. Please refer to it and try again.

#5

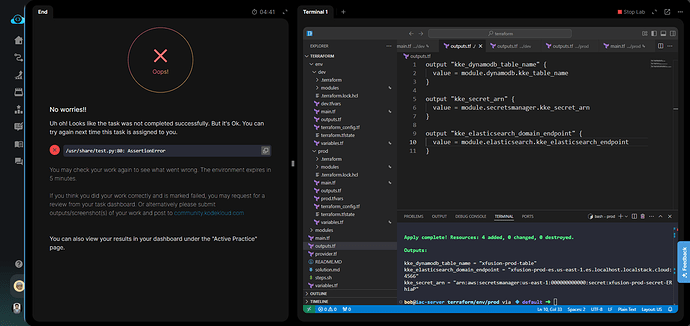

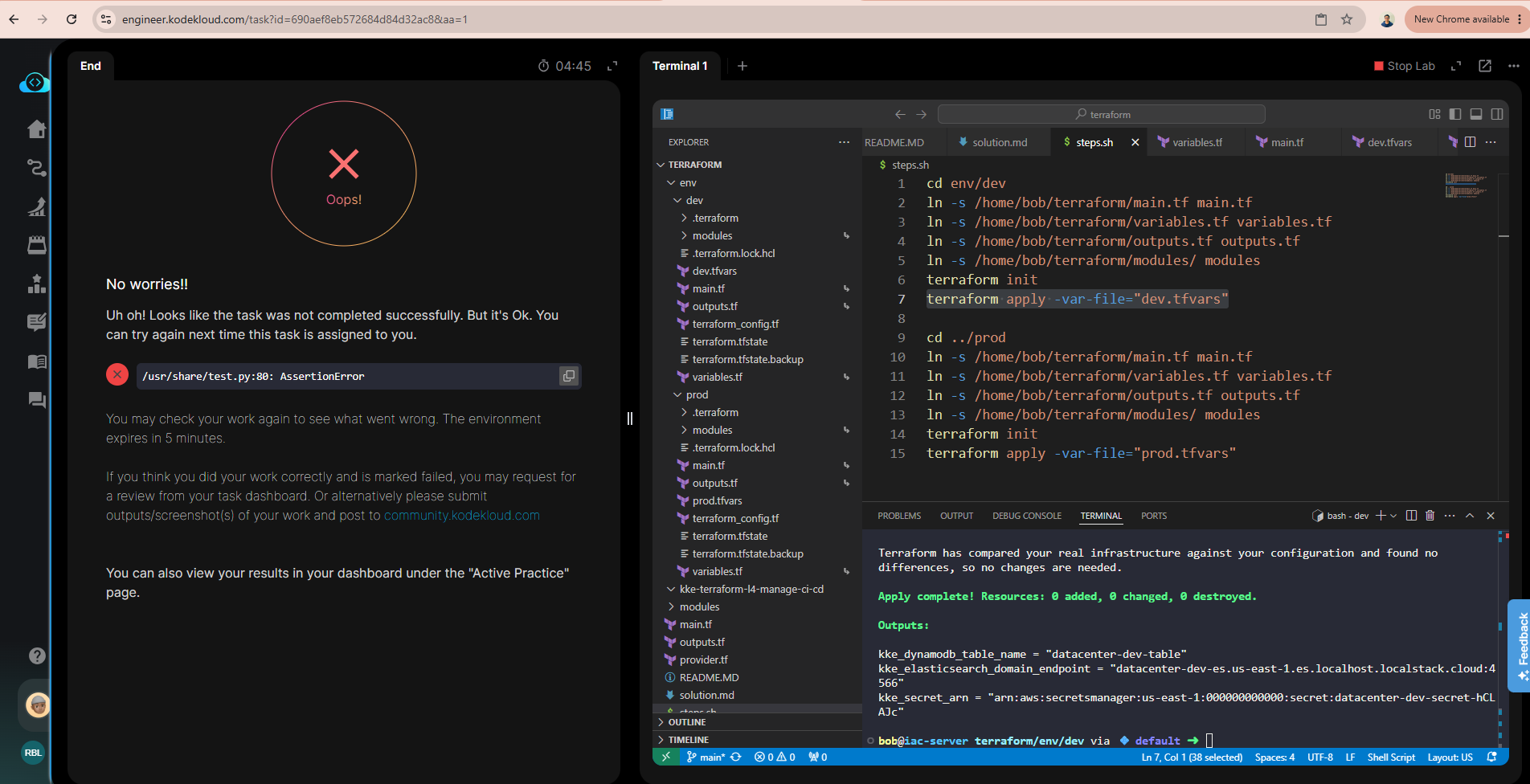

Many thanks @raymond.baoly for your time and support. However, unfornutalety after 2 attempts with absolute and relativ paths, I am still NOT able to complete the task. I checked the existence of the terraform.tfstate file for both environments. They contain the right information. But after the apply command for prod, Terraform quite lost its state even with the terraform.tfstate. I tried to reapply the dev but the prod lost its state this time. I made some search on the web and copilot without any success.

#6

Did you check and use my code?

#7

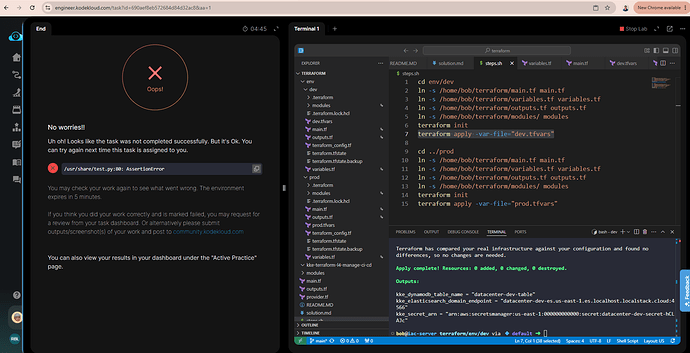

Sorry for the delay to answer you. But yes I used your code and followed exactly your written steps.
