KK engineer Azure Level 4 Task 1 VM Setup and Configuration for Azure API Gateway

tzeko · September 6, 2025, 3:04pm

Hi!

I have problem with validation of task 1 on Azure level 4 VM Setup and Configuration for Azure API Gateway.

When I validate the task, I receive the following error message:
“Round-robin behavior is not working as expected.”

However, when I test the Application Gateway either through a web browser or using the curl command, the load balancing works correctly across both VMs.

I have attached the JSON export of the Application Gateway configuration.
AZ4-1.pdf (126.9 KB)

Could you please confirm if the issue is related to the Application Gateway configuration or if this is a platform-level problem?

The first issue above is more important to solve.

The secound issue I encountered is that I cannot create an Application Gateway through the CLI. It returns an error stating that the SKU is not valid. I tried with the following SKUs:

Standard_Medium
Standard_Small
Standard_v2
WAF_Large
WAF_Medium
WAF_v2
Basic

Each of these attempts resulted in the same error.

I can create all resources below through CLI:

Virtual network (VNet)

Subnets
Network Security Groups (NSGs)
Virtual Machines (VMs)

All of these resources are created using the Azure CLI.

The first issue is more important to solve.

Kind regards,
Tomislav

tzeko · September 8, 2025, 5:33pm

Has anyone completed Task 1 in Level 4 of Azure? No matter what I try, I keep getting the error:
“Round-robin behavior is not working as expected.”

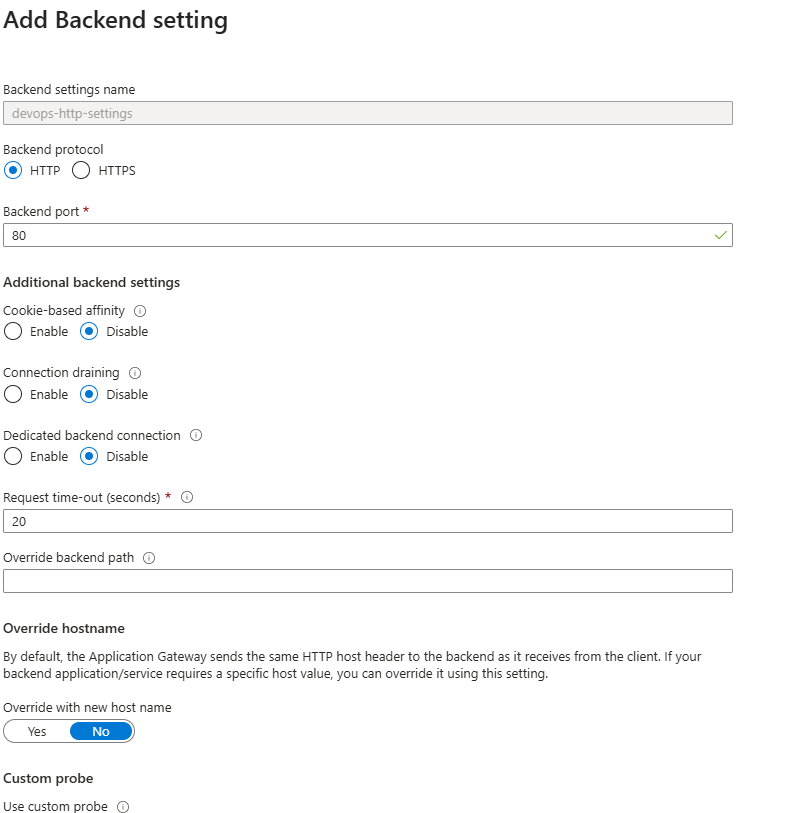

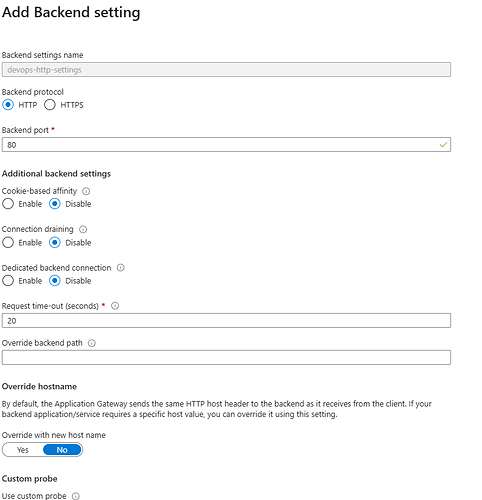

My backend settings

tzeko · September 15, 2025, 12:00pm

Has anyone already completed Task 1 Azure Level4? If so, I would appreciate it if you could share the method or approach you used to complete it.

raymond.baoly · September 17, 2025, 11:26am

Hi @tzeko

I’m trying to verify it, but I’m stuck on the VM creation step. What command did you use to create these VMs?

sethnaman5 · October 2, 2025, 8:38am

Yes I have completed today only just let me know if you need any assistance.

tzeko · October 2, 2025, 10:52am

Can you show the steps how did you completed the task.

Here is mine:

I created networks, NSG, VMs with script:

Variables

#variable V is for naming resources. In my case prefix for resources was datacenter, so Variable V is datacenter
V=“datacenter”
#variable RG is for resource group
RG=$(az group list --query ‘[].name’ --output table | grep ‘kml’)
LOC=“EastUS”
VNET=“${V}-vnet”
SUBNET_VMS=“${V}-subnet”
SUBNET_APGW=“${V}-apgw-subnet”
APGW=“${V}-apgw”
APGW_PIP=“${V}-apgw-ip”
NSG=“${V}-nsg”
VM1=“${V}-vm1”
VM2=“${V}-vm2”
ADMIN=azureuser
PASSWORD=“ChangeMe1234!” # for quick demo only

1) Creating Network

az network vnet create -g $RG -n $VNET -l $LOC --address-prefixes 10.10.0.0/16
–subnet-name $SUBNET_VMS --subnet-prefix 10.10.1.0/24
az network vnet subnet create -g $RG --vnet-name $VNET -n $SUBNET_APGW --address-prefix 10.10.2.0/24

NSG to allow HTTP/SSH (demo)

az network nsg create -g $RG -n $NSG -l $LOC
az network nsg rule create -g $RG --nsg-name $NSG -n Allow-HTTP --priority 100
–access Allow --protocol Tcp --direction Inbound --destination-port-ranges 80
az network nsg rule create -g $RG --nsg-name $NSG -n Allow-SSH --priority 110
–access Allow --protocol Tcp --direction Inbound --destination-port-ranges 22
az network vnet subnet update -g $RG --vnet-name $VNET -n $SUBNET_VMS --network-security-group $NSG

2) VMs + Nginx (cloud-init files)

cat > vm1-cloudinit.yml <<‘EOF’
#cloud-config
package_update: true
packages: [ nginx ]
write_files:

path: /var/www/html/index.html
permissions: ‘0644’
content: |
<!doctype html>
Welcome to KKE Labs:Version 1

runcmd:
systemctl enable nginx
systemctl restart nginx
EOF

cat > vm2-cloudinit.yml <<‘EOF’
#cloud-config
package_update: true
packages: [ nginx ]
write_files:

path: /var/www/html/index.html
permissions: ‘0644’
content: |
<!doctype html>
Welcome to KKE Labs:Version 2

runcmd:
systemctl enable nginx
systemctl restart nginx
EOF

az vm create -g $RG -n $VM1 -l $LOC --image Ubuntu2204 --size Standard_B1s
–admin-username $ADMIN --generate-ssh-keys
–vnet-name $VNET --subnet $SUBNET_VMS --custom-data vm1-cloudinit.yml --public-ip-sku Standard
–storage-sku Standard_LRS

az vm create -g $RG -n $VM2 -l $LOC --image Ubuntu2204 --size Standard_B1s
–admin-username $ADMIN --generate-ssh-keys
–vnet-name $VNET --subnet $SUBNET_VMS --custom-data vm2-cloudinit.yml --public-ip-sku Standard
–storage-sku Standard_LRS

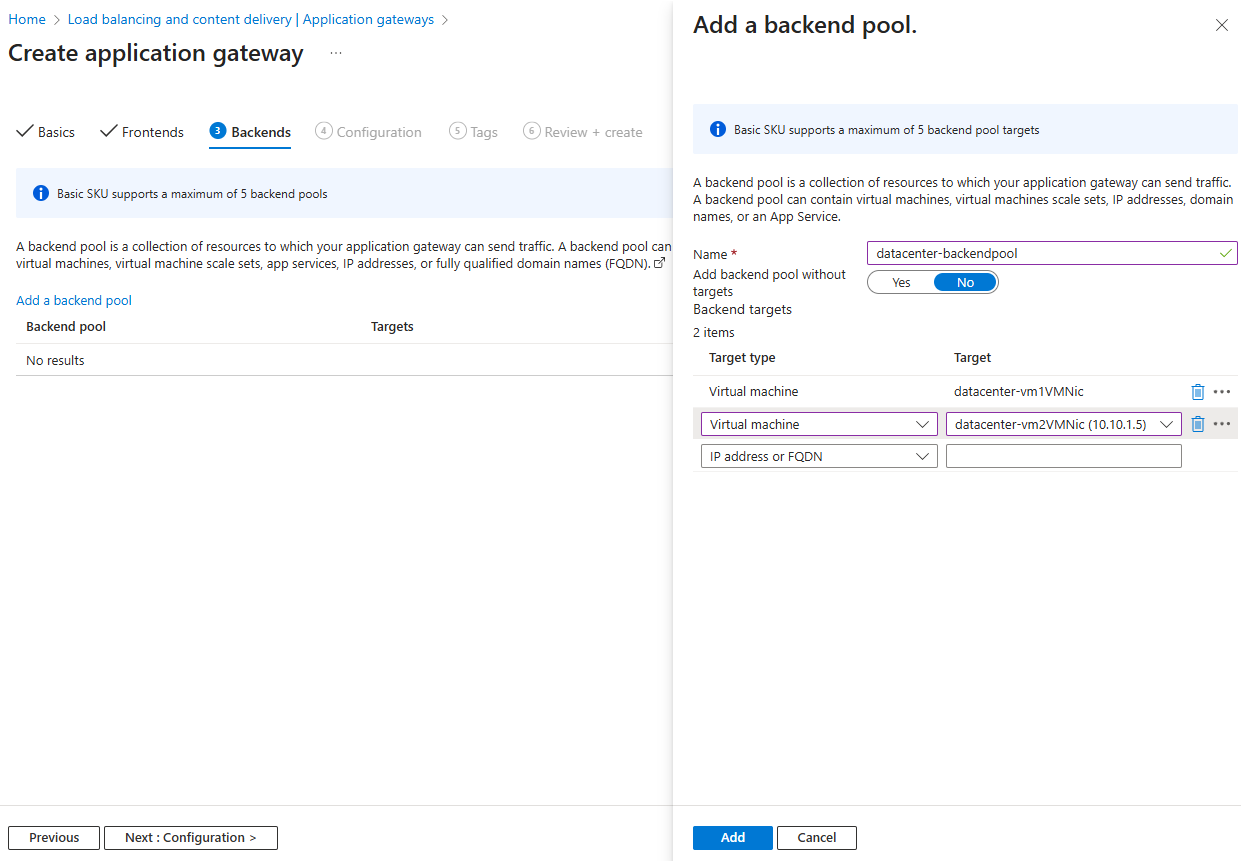

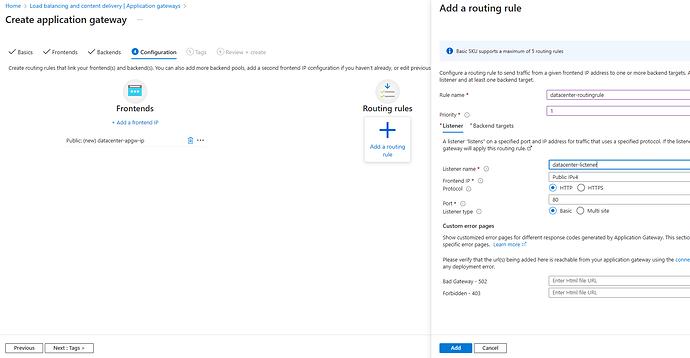

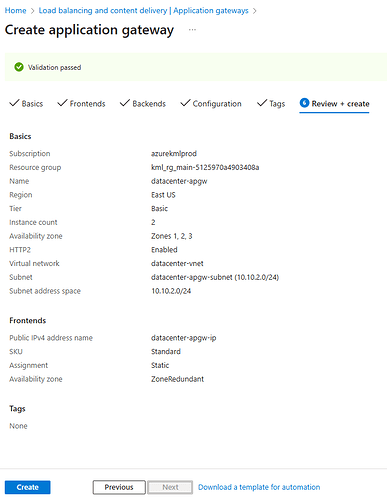

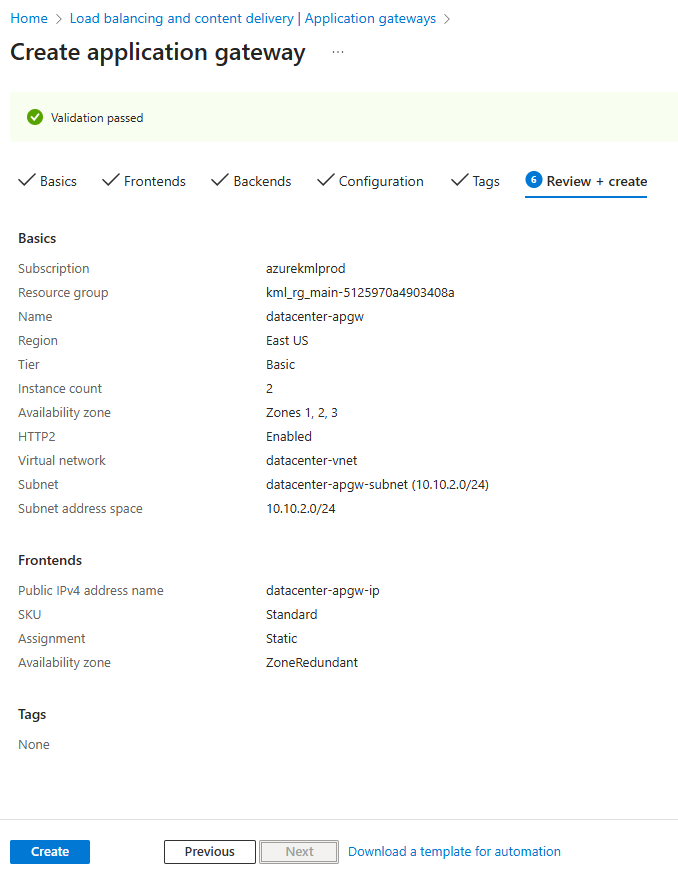

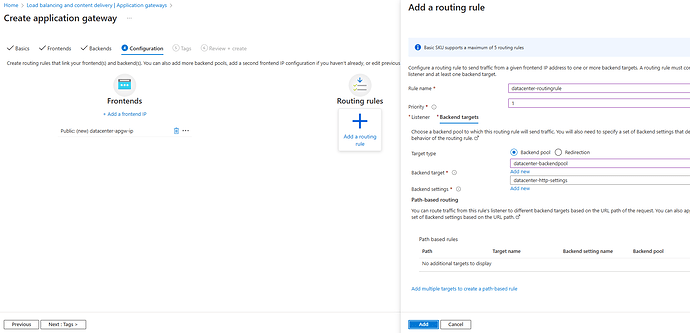

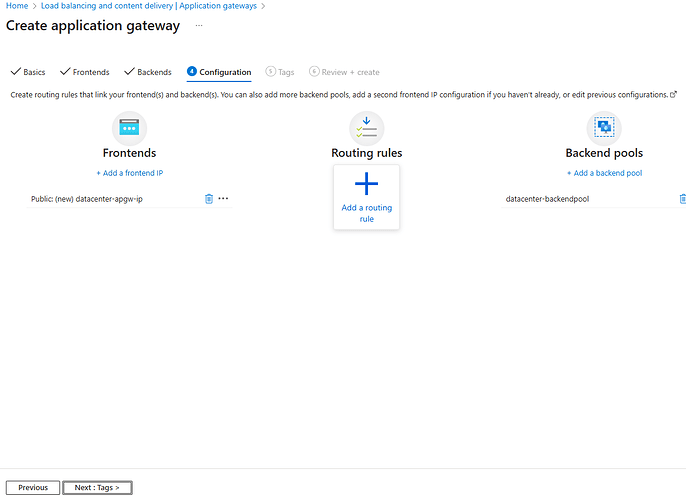

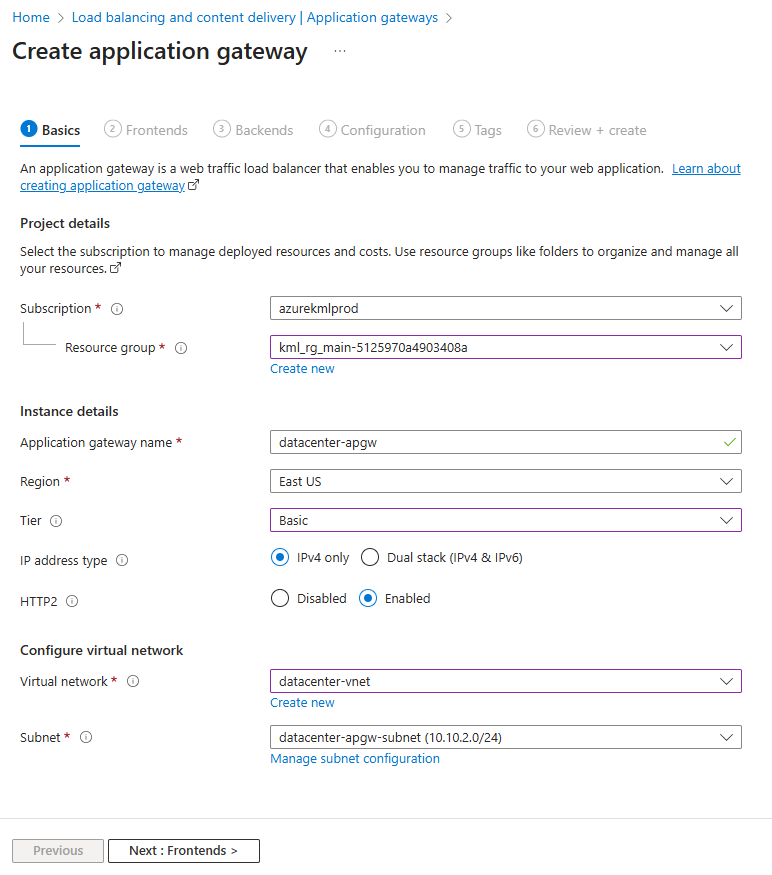

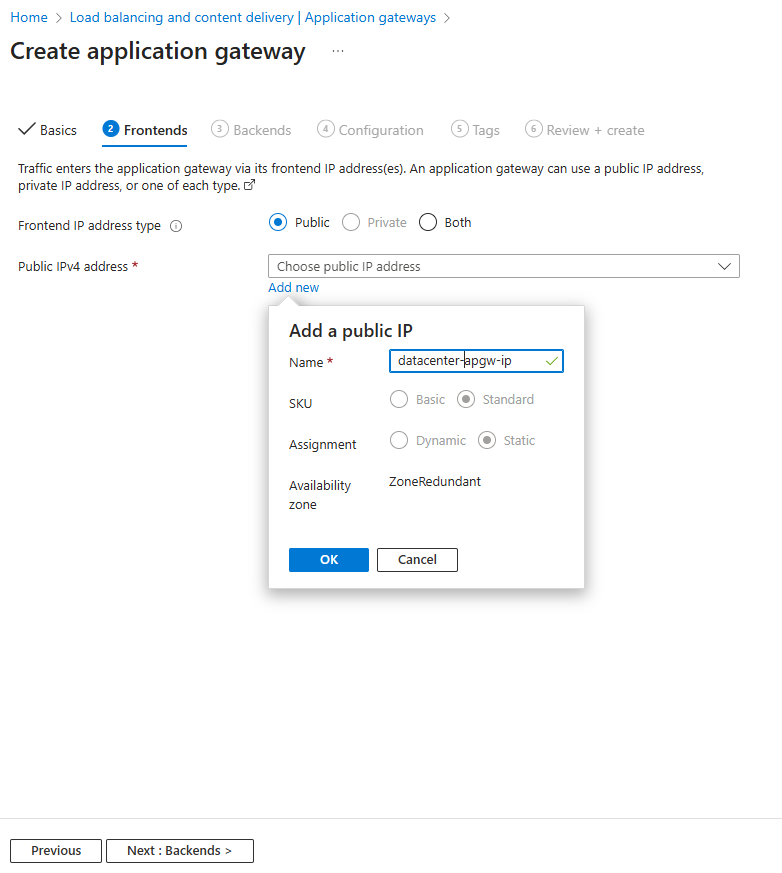

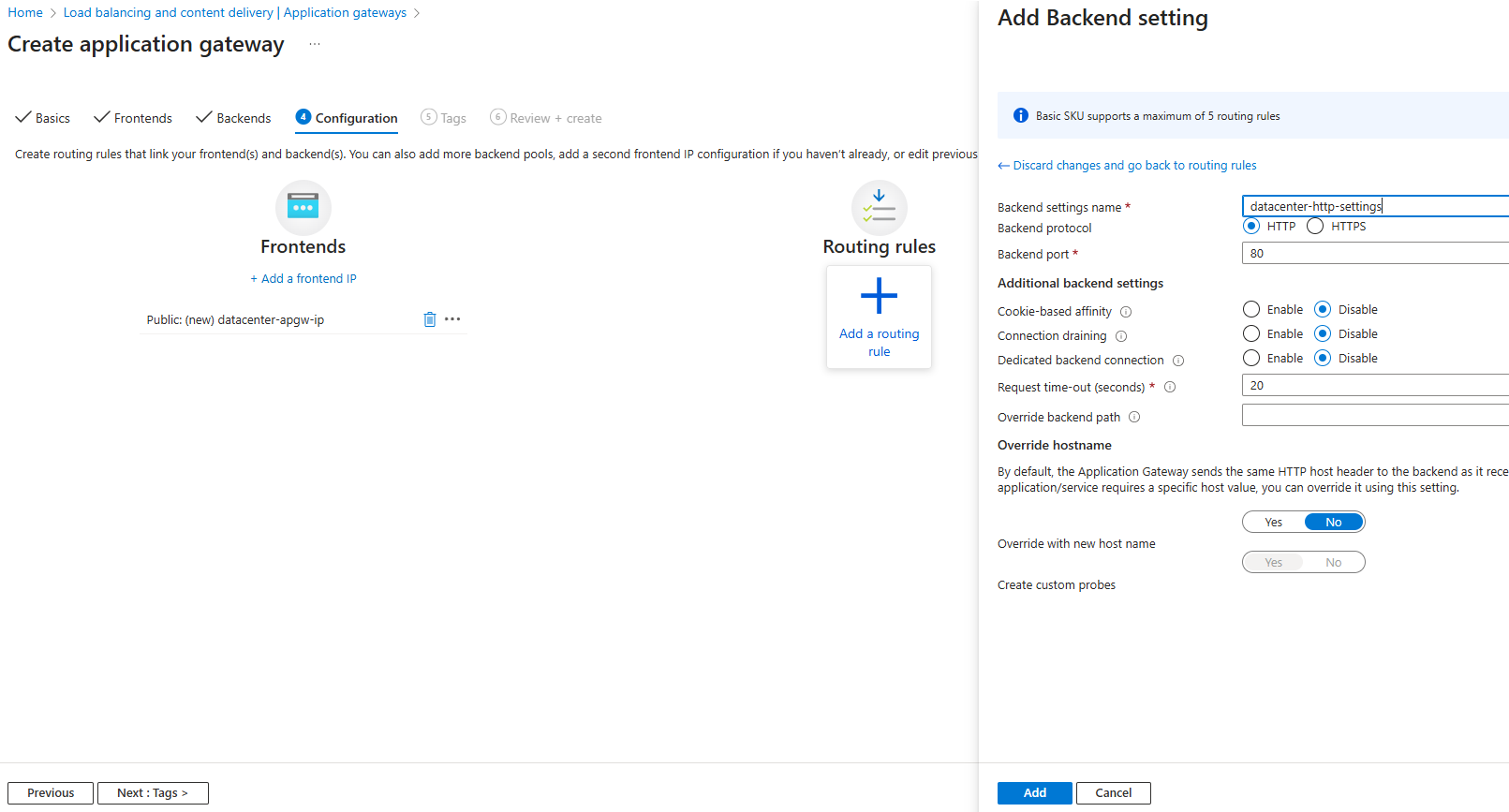

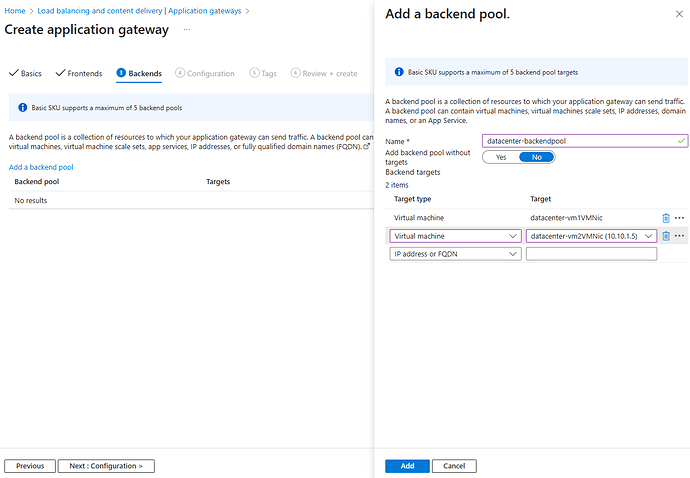

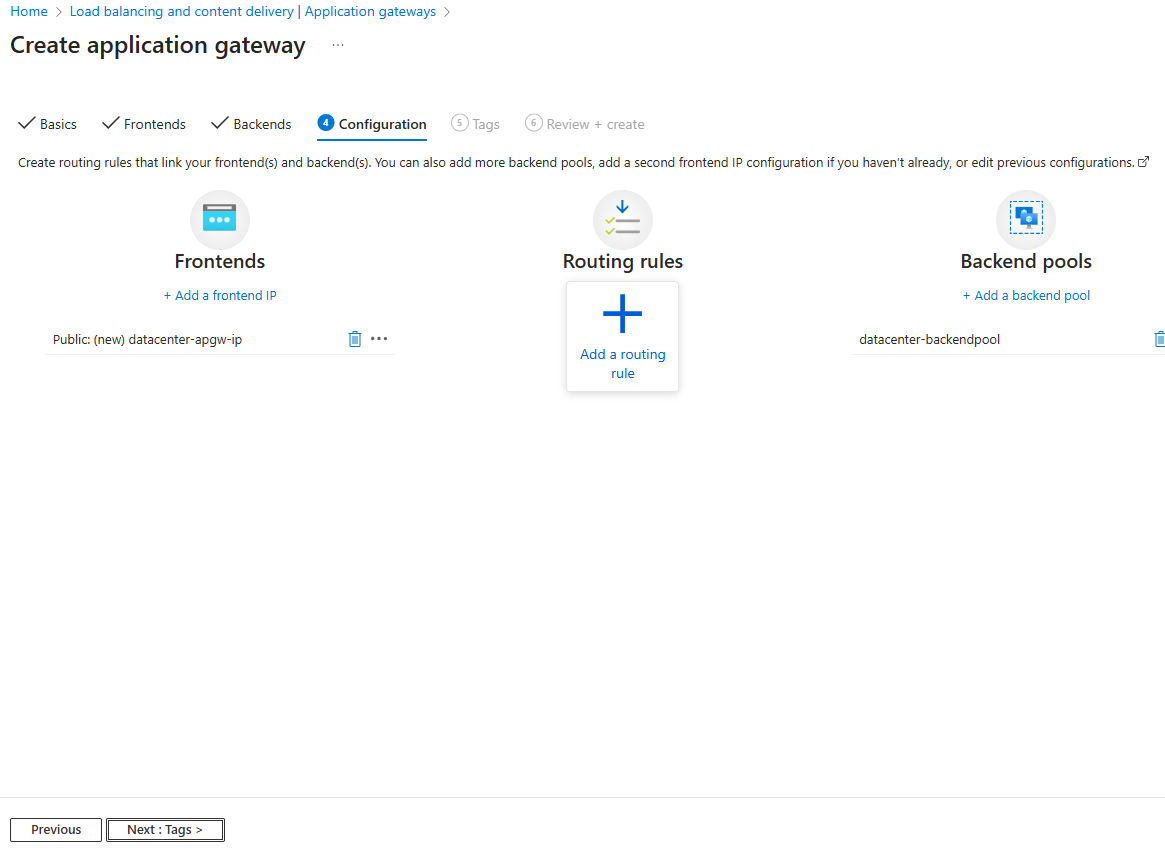

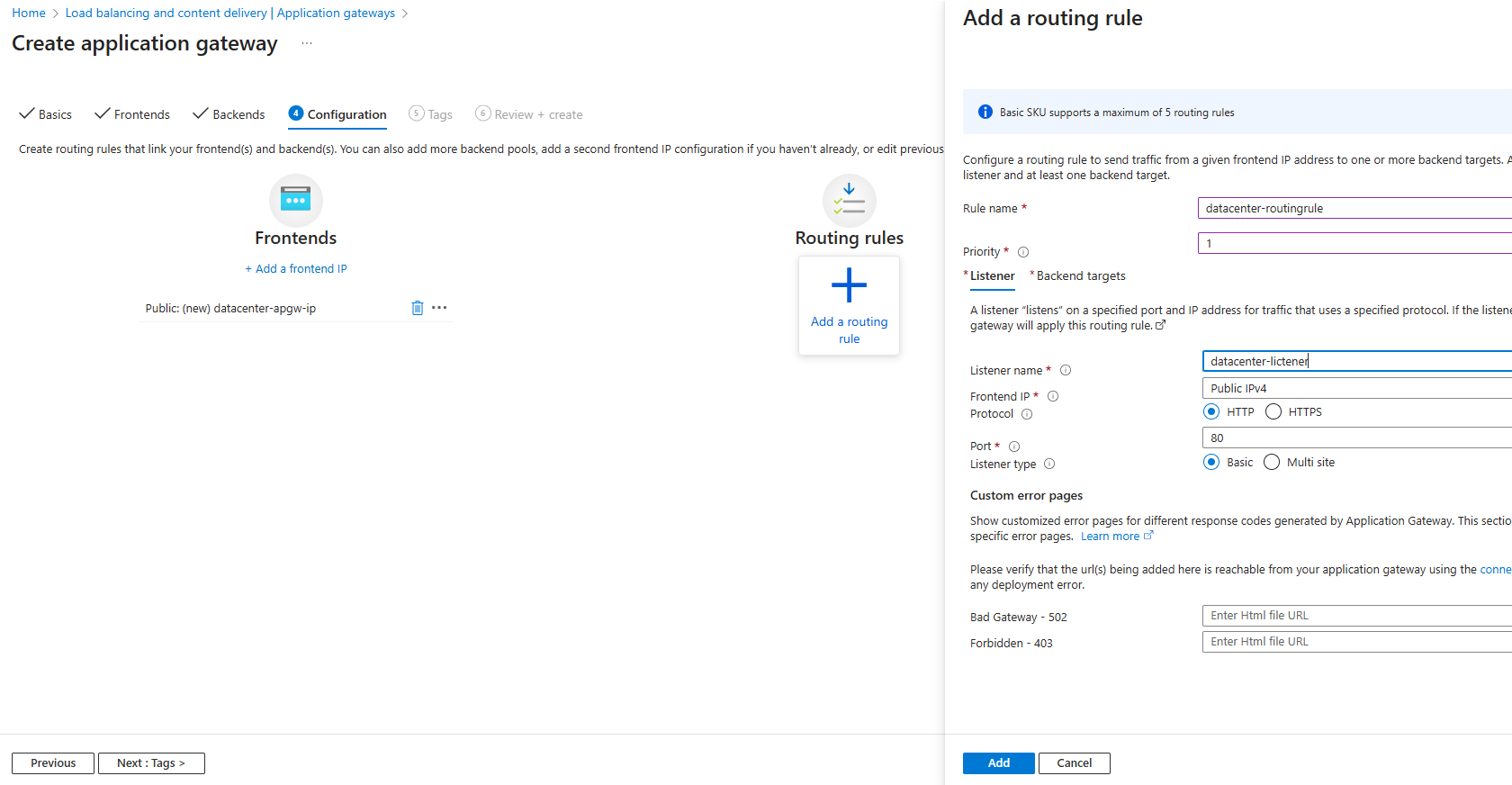

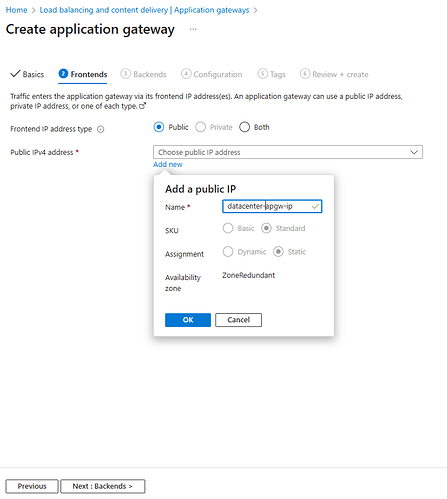

All other resoruces I created on portal because policy doesn’t allow to create AG with basic SKU with script. Steps for AG:
