Day 80: Jenkins Chained Builds

[kk_user1]

I am currently doing Day 80: Jenkins Chained Builds

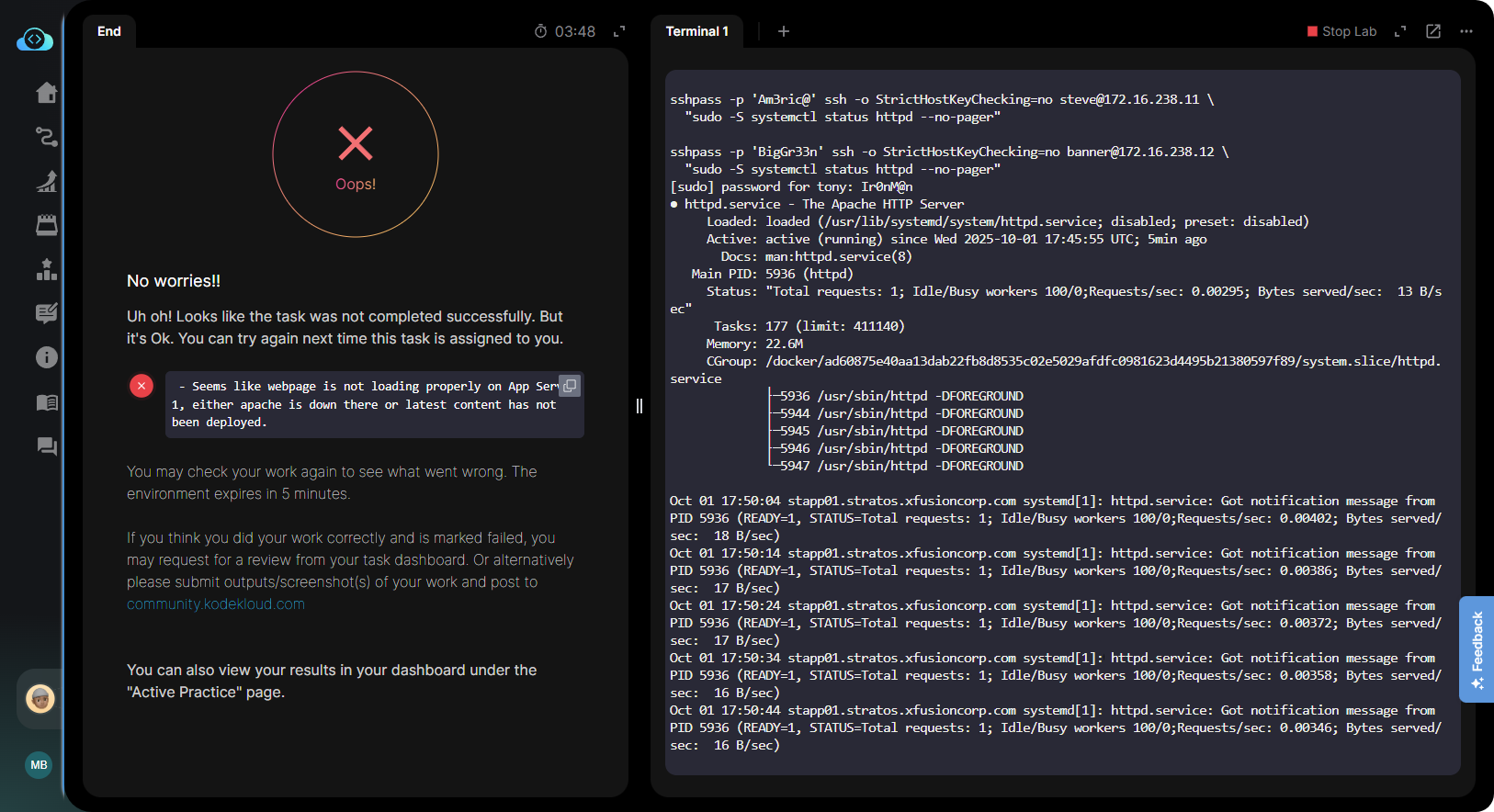

I go the error:

• Seems like webpage is not loading properly on App Server 1, either apache is down there or latest content has not been deployed.

I have checked all app server and page is loading. Is there any specific content the test is looking for?

[raymond.baoly]

Hi @kk_user1

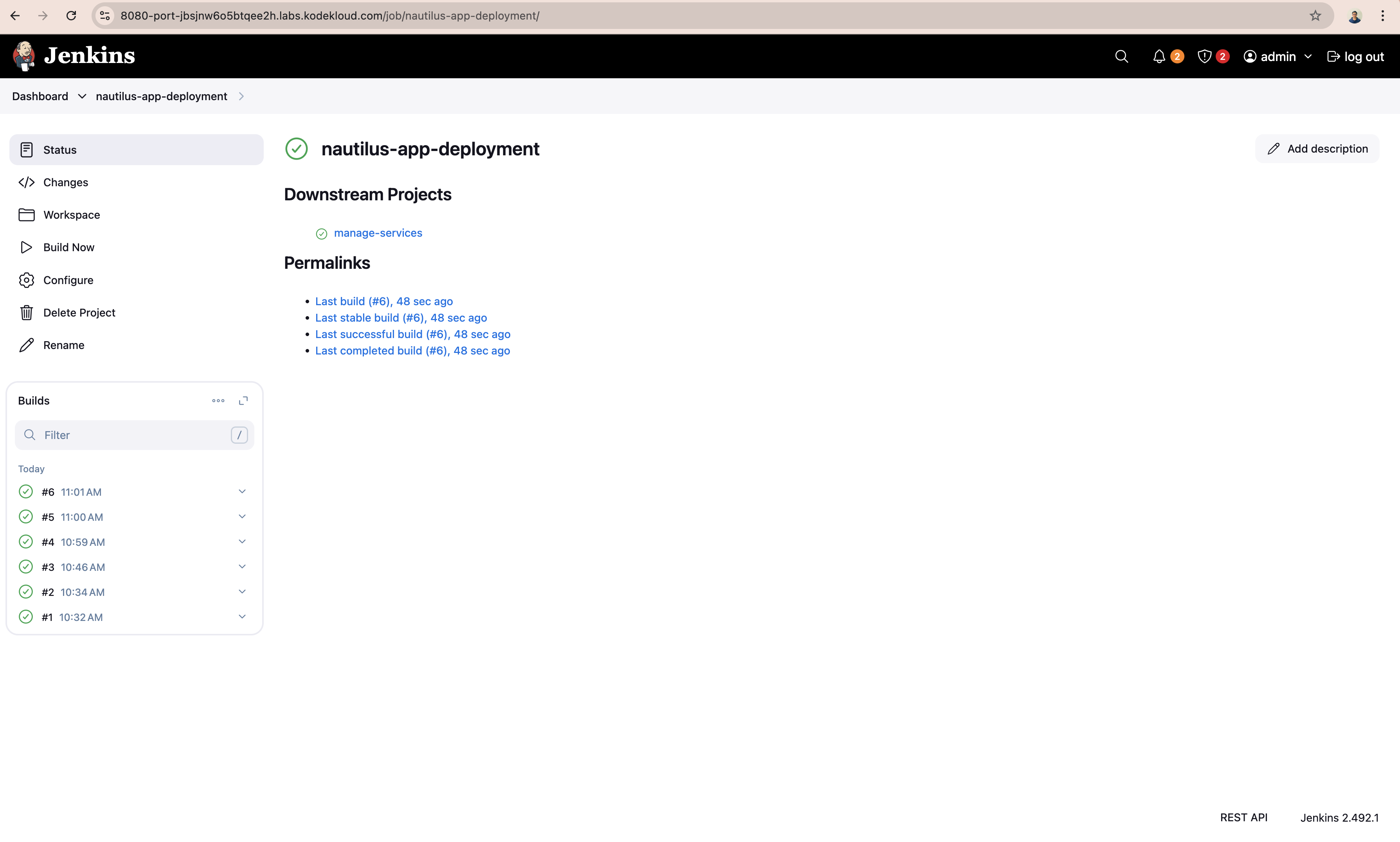

Thank you for your detailed feedback. I’ve checked on my side, and it’s working fine. You can see the screenshot below. Could you please share the details of your Jenkins jobs?

[Rajat-1998]

I am saying that if you have completed the task then can you share the tutorial video or document with us so that we can identify where we are stuck.

[raymond.baoly]

Hi @Rajat-1998

Thanks for your feedback. KKE is designed to give real experience, and there are many ways to complete the tasks. That’s why KKE tasks don’t have a solution tab like KodeKloud Labs.

If a student or user gets stuck, they can share their approach and information, and the community can help with ideas. So please try it on your own, and if it doesn’t work, we can discuss and learn together.

If you want to practice labs with solutions, I suggest visiting: Jenkins Course | KodeKloud

[Martoni]

Hello i have the same problem everything is working both jobs are successfull no errors. app button works .For the first job i use this cmd :

Deploy to Storage Server via SSH

sshpass -p ‘Bl@kW’ ssh -o StrictHostKeyChecking=no [email protected] << ‘EOF’
cd /var/www/html
sudo git fetch origin
sudo git reset --hard origin/master
sudo chown -R natasha:natasha /var/www/html
sudo chmod -R 755 /var/www/html
echo “Deployment successful!”
ls -la /var/www/html/
EOF

for the second :

#!/bin/bash

App Server 1

sshpass -p ‘Ir0nM@n’ ssh -o StrictHostKeyChecking=no [email protected] << ‘EOF’
echo ‘Ir0nM@n’ | sudo -S systemctl restart httpd
echo ‘Ir0nM@n’ | sudo -S systemctl status httpd --no-pager -l
EOF

App Server 2

sshpass -p ‘Am3ric@’ ssh -o StrictHostKeyChecking=no [email protected] << ‘EOF’
echo ‘Am3ric@’ | sudo -S systemctl restart httpd
echo ‘Am3ric@’ | sudo -S systemctl status httpd --no-pager -l
EOF

App Server 3

sshpass -p ‘BigGr33n’ ssh -o StrictHostKeyChecking=no [email protected] << ‘EOF’
echo ‘BigGr33n’ | sudo -S systemctl restart httpd
echo ‘BigGr33n’ | sudo -S systemctl status httpd --no-pager -l
EOF

[raymond.baoly]

Hi @Martoni

What’s the result when you try to curl the application? For example: curl stapp02:8080.

[Martoni]

Hi .
I solved the problem. tank you for the atention

[Amar-Naidu]

Hi Martoni,

Can you please share the steps

[Amar-Naidu]

Hi All,

I tried multiple times to complete the chain build but it always stuck with different errors however finally I got below error,can you please someone help on this ?

below is the error I got after submitting as “Seems like your ‘manage-services’ Jenkins job isn’t configured to start ‘httpd’ service on App Server 1 or the job was not triggered by the upstream job”

NOTE: nautilus-app-deployment job was successfully completed and it got stuck with manage-service job

[Martoni]

this solution for the upsream job worked for me :

#!/bin/bash
echo “Starting deployment to storage server…”

Ensure webroot exists (sudo)

sshpass -p ‘Bl@kW’ ssh -o StrictHostKeyChecking=no [email protected]
“echo ‘Bl@kW’ | sudo -S mkdir -p /var/www/html”

Create temp dir as natasha user (no sudo)

sshpass -p ‘Bl@kW’ ssh -o StrictHostKeyChecking=no [email protected]
“mkdir -p /tmp/jenkins_deploy && chmod 700 /tmp/jenkins_deploy”

echo “Copying workspace to /tmp/jenkins_deploy…”

Copy all workspace files via scp into temp directory

sshpass -p ‘Bl@kW’ scp -o StrictHostKeyChecking=no -r ./* [email protected]:/tmp/jenkins_deploy/

Move files into webroot and set permissions (sudo)

sshpass -p ‘Bl@kW’ ssh -o StrictHostKeyChecking=no [email protected] << ‘EOF’
echo ‘Bl@kW’ | sudo -S cp -r /tmp/jenkins_deploy/* /var/www/html/
echo ‘Bl@kW’ | sudo -S rm -rf /tmp/jenkins_deploy
echo ‘Bl@kW’ | sudo -S chown -R natasha:natasha /var/www/html
echo ‘Bl@kW’ | sudo -S chmod -R 755 /var/www/html
echo “Deployment completed: files in /var/www/html:”
ls -la /var/www/html
EOF

for the dowstream the same from the post
