DAY 12: 100 Days of devops issue

Ahamed · May 20, 2026, 5:01pm

Can someone help me complete this task?

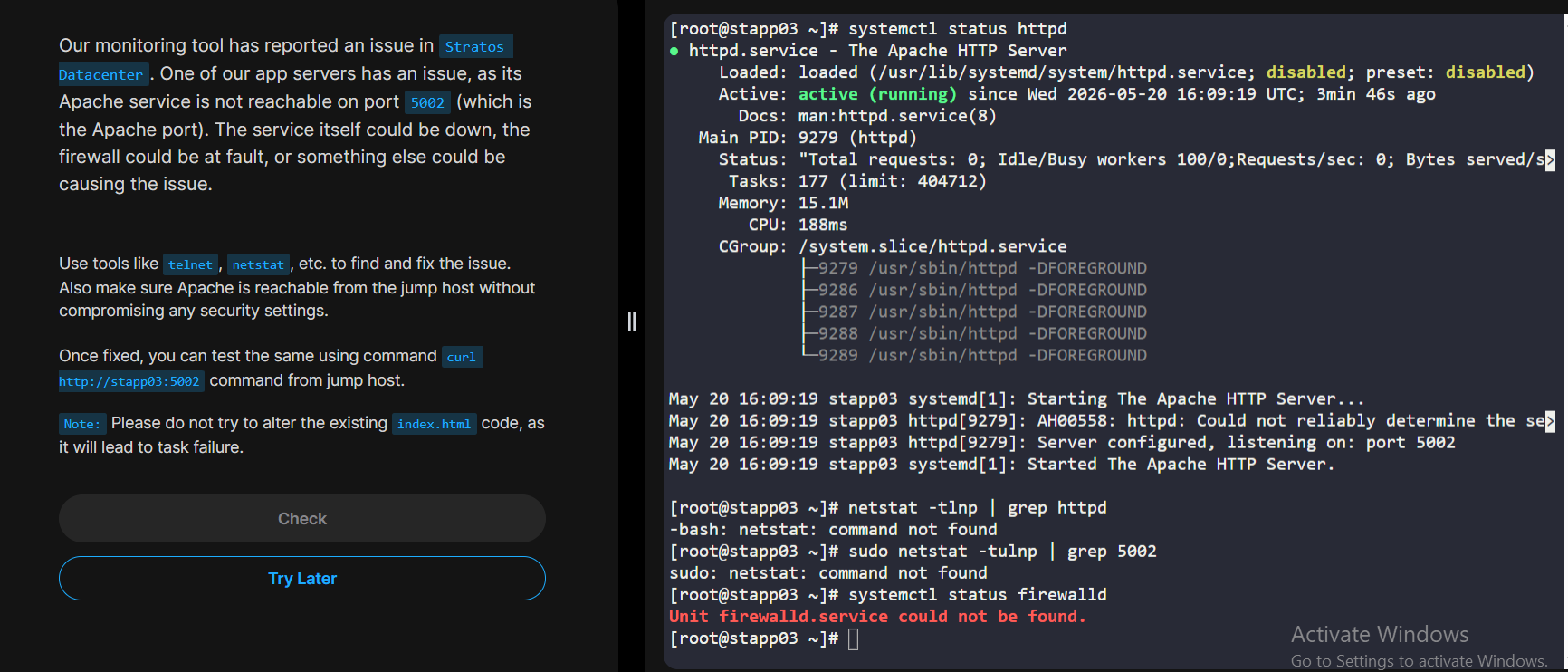

First, I checked the status of Apache, and it showed that the service was running. So I thought the issue might be related to the firewall. However, when I ran the command, it showed:

Unit firewalld.service could not be found

So I concluded that firewalld was not installed on the server.

Then I checked whether iptables was blocking the connection, but the output was:

sudo: iptables: command not found

After that, I tested the connection from both stapp03 and the jump host by sending a curl request to the Apache server, and it worked successfully.

Even after verifying all this, I still cannot complete the lab…

MIQDAD · May 20, 2026, 5:05pm

hi refer to this solution for help and if you find this repo helpful please give it a star

github.com

MiqdadProjects/kodekloud-eng-100-days-devops/blob/main/DAY12/task-12-fix-apache-port-3002-connectivity.md

**🌟 Task 12 - Troubleshoot and Fix Apache Service Connectivity on Port 3002**

**📌 Task Description**

The monitoring tool reported that **Apache service** on **App Server 1** in **Stratos Datacenter** is not reachable on **port 3002**. Possible issues include the service being down, firewall blocking, or other network issues.

👉 **Your task:** Use network troubleshooting tools such as `telnet`, `netstat`, `iptables`, etc., to identify and fix the problem. Confirm Apache is reachable from the jump host without compromising security.

💡 **Note:** You can find the infrastructure details by clicking on the **Details of all Users and Servers** button on the top-right section of the page.

---

## 🔹 Step 1: Test connectivity from Jump Host

**From Jump Host:**

```bash
telnet stapp01 3002
```

This file has been truncated. show original

MIQDAD · May 20, 2026, 6:10pm

THANKS , you can also explore the solution of 100 days of cloud (AWS) where i explained and solved each task in a video tutorial

and if its helps give it a star

Ahamed · May 20, 2026, 6:20pm

Thank you so much. That was very helpful, and I was able to complete the task. Your repo helped guide me and inspect where the issue was.

MIQDAD · May 21, 2026, 6:27am

sir , always welcome
