Hi Team,
I have a query related to the question mentioned below which mentions NOT to make adjustment to deployment but in the solution it’s modifying deployment itself, which is confusing.
Kindly assist.
Question:
Solve this question on: ssh cluster3-controlplane
Your cluster has a failed deployment named backend-api with multiple pods. Troubleshoot the deployment so that all pods are in a running state. Do not make adjustments to the resource limits defined on the deployment pods.
Solution provided to the question:
SSH into the cluster3-controlplane host
ssh cluster3-controlplane
1. Check Deployment Status
Verify the current status of the deployment:
kubectl get deploy
Expected output (shows that only 2 out of 3 pods are running):
NAME READY UP-TO-DATE AVAILABLE AGE
backend-api 2/3 2 2 3m48s
The third pod is not getting scheduled.
2. Find the Root Cause
Describe the ReplicaSet to check why the third pod is not being created:
kubectl describe replicasets backend-api-7977bfdbd5
The issue is due to ResourceQuota limitations.
The namespace has a memory limit of 300Mi, and the deployment is exceeding it.
requests.memory=128Mi, used: requests.memory=256Mi, limited: requests.memory=300Mi
Warning FailedCreate Error creating: pods "backend-api-7977bfdbd5-hpcjw" is forbidden: exceeded quota: cpu-mem-quota,
requested: requests.memory=128Mi, used: requests.memory=256Mi, limited: requests.memory=300Mi
3, Modify the Deployment to Fit Within the ResourceQuota
Edit the deployment and reduce memory requests:
kubectl edit deployment backend-api -n default
Modify the resources section:
resources:
requests:
cpu: "50m" # Reduced from 100m to 50m
memory: "90Mi" # Reduced from 128Mi to 90Mi (Fits within quota)
limits:
cpu: "150m"
memory: "150Mi"
4. Verify the Pods (Still Only 2 Running)
Check if the new pod is scheduled:
kubectl get pods -n default
If the third pod is still missing, the old ReplicaSet might be preventing it.
5. Delete the Old ReplicaSet to Allow New Pods to Start
Find the old ReplicaSet:
kubectl get rs -n default
Delete the outdated ReplicaSet:
kubectl delete rs backend-api-7977bfdbd5 -n default
Wait for the new pods to come up.
6. Confirm All Pods Are Running
Thanks,
Sakshi
Hi @sakshibag80
The question specifically asks not to make adjustments to the resource limits. If you look closely at the solution, it actually updates the resources.requests, leaving the limits untouched.
It’s really important to pay attention to these small details because they can be easy to miss and might lead you off track, especially during an exam. Taking a moment to carefully read and understand exactly what’s being asked can make a big difference.
Hi @Santosh_KodeKloud, thanks for your reply.
However, I am not entirely sure that @sakshibag80 has neglected to follow instructions.
I will attempt to paste my solution, so that you can compare it with the solution provided by the exam itself. Please note that I have only adjusted the resources.request section of my deployment. Deleted the replicasets (as they were not allowing my deployments to run).
I was still marked wrong on this exercise, and quite frankly I do not understand what I may have done wrong. Can you possibly explain why?
cluster3-controlplane ~ ➜ k get pods
NAME READY STATUS RESTARTS AGE
backend-api-64ffd77d9d-9lth2 1/1 Running 0 7m13s
backend-api-64ffd77d9d-bv2pd 1/1 Running 0 7m12s
backend-api-64ffd77d9d-gkqfw 1/1 Running 0 7m12s
cluster3-controlplane ~ ➜ k describe deployments.apps backend-api
Name: backend-api
Namespace: default
CreationTimestamp: Mon, 21 Apr 2025 11:12:57 +0000
Labels: <none>
Annotations: deployment.kubernetes.io/revision: 1
Selector: app=backend-api
Replicas: 3 desired | 3 updated | 3 total | 3 available | 0 unavailable
StrategyType: RollingUpdate
MinReadySeconds: 0
RollingUpdateStrategy: 25% max unavailable, 25% max surge
Pod Template:
Labels: app=backend-api
Annotations: kubectl.kubernetes.io/restartedAt: 2025-04-21T11:17:53Z
Containers:
backend-api:
Image: nginx
Port: <none>
Host Port: <none>
Limits:
cpu: 150m
memory: 150Mi
Requests:
cpu: 100m
memory: 80Mi
Environment: <none>
Mounts: <none>
Volumes: <none>
Node-Selectors: <none>
Tolerations: <none>
Conditions:
Type Status Reason
---- ------ ------
Available True MinimumReplicasAvailable
Progressing True NewReplicaSetAvailable
OldReplicaSets: <none>
NewReplicaSet: backend-api-64ffd77d9d (3/3 replicas created)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ScalingReplicaSet 13m deployment-controller Scaled up replica set backend-api-6b6454f5cf from 0 to 3
Normal ScalingReplicaSet 11m deployment-controller Scaled up replica set backend-api-78597b8bd5 from 0 to 1
Normal ScalingReplicaSet 10m deployment-controller Scaled down replica set backend-api-6b6454f5cf from 3 to 2
Normal ScalingReplicaSet 10m deployment-controller Scaled up replica set backend-api-d54c69cd5 from 0 to 1
Normal ScalingReplicaSet 9m16s deployment-controller Scaled up replica set backend-api-d54c69cd5 from 1 to 3
Normal ScalingReplicaSet 8m52s deployment-controller Scaled down replica set backend-api-78597b8bd5 from 1 to 0
Normal ScalingReplicaSet 8m52s deployment-controller Scaled up replica set backend-api-64ffd77d9d from 0 to 1
Normal ScalingReplicaSet 8m50s deployment-controller Scaled down replica set backend-api-d54c69cd5 from 3 to 2
Normal ScalingReplicaSet 8m50s deployment-controller Scaled up replica set backend-api-64ffd77d9d from 1 to 2
Normal ScalingReplicaSet 7m28s (x3 over 8m48s) deployment-controller (combined from similar events): Scaled up replica set backend-api-64ffd77d9d from 0 to 3
I tried this question again. The question says to get my pods in a running state, without editing the requests.limits on the deployment (and I don’t think I did). But I was hoping that maybe two options might make my mistake a lot more clearer. My pods were running (without any restarts). Please see cut-out from my terminal:
student-node ~ ✖ ssh cluster3-controlplane
cluster3-controlplane ~ ➜ k get pods
NAME READY STATUS RESTARTS AGE
backend-api-78597b8bd5-97npp 1/1 Running 0 19m
backend-api-78597b8bd5-vbvtj 1/1 Running 0 19m
backend-api-78597b8bd5-w5ddv 1/1 Running 0 19m
cluster3-controlplane ~ ➜ k describe deployments.apps backend-api
Name: backend-api
Namespace: default
CreationTimestamp: Tue, 22 Apr 2025 21:16:27 +0000
Labels: <none>
Annotations: deployment.kubernetes.io/revision: 2
Selector: app=backend-api
Replicas: 3 desired | 3 updated | 3 total | 3 available | 0 unavailable
StrategyType: RollingUpdate
MinReadySeconds: 0
RollingUpdateStrategy: 25% max unavailable, 25% max surge
Pod Template:
Labels: app=backend-api
Containers:
backend-api:
Image: nginx
Port: <none>
Host Port: <none>
Limits:
cpu: 150m
memory: 150Mi
Requests:
cpu: 100m
memory: 80Mi
Environment: <none>
Mounts: <none>
Volumes: <none>
Node-Selectors: <none>
Tolerations: <none>
Conditions:
Type Status Reason
---- ------ ------
Available True MinimumReplicasAvailable
Progressing True NewReplicaSetAvailable
OldReplicaSets: <none>
NewReplicaSet: backend-api-78597b8bd5 (3/3 replicas created)
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal ScalingReplicaSet 28m deployment-controller Scaled up replica set backend-api-6b6454f5cf from 0 to 3
Normal ScalingReplicaSet 20m deployment-controller Scaled up replica set backend-api-78597b8bd5 from 0 to 1
Normal ScalingReplicaSet 20m deployment-controller Scaled up replica set backend-api-78597b8bd5 from 1 to 3

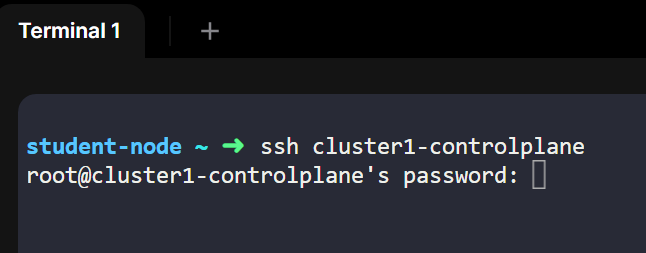

How you ssh in cluster1-controlplane. Its asking me password to get in. NO password provided in question.
@Vigilante
Can you please share the lab name for this?
Thanks but got the resolution. Closed browser >> cleared cache >> restarted test again. No issue then.
Hi @Santosh_KodeKloud
Please did you get an opportunity to look through? Do you think I did anything wrong? I have gone through the labs (specifically for this question) about 10 times now, and I cannot get it to work. I am not adjusting request.cpu simply because the kubectl events do not indicate that there is any issue with my cpu request.
Please I would just like to know if this is an issue with my attempted solution or if it is just an issue with the way the test is being marked. OR am I doing something that is against the best practices.
Thank you very much
Could you share the YAML manifest of the updated file, which was marked as wrong?
Sure. Thanks for taking another look @Santosh_KodeKloud. Please see the result from my kubectl get deployment backend-api -o yaml command. Also notice that the pods were running without any restarts.
in the solution provided after my submission and review, the cpu request is edited downwards. I have chosen not to edit my cpu request because it fits my 3 pods perfectly (so I didn’t see the need to edit. they are each requesting 100m, maximum I can use in the namespace is 300m, and this fits my deployment perfectly.
cluster3-controlplane ~ ➜ k get pods
NAME READY STATUS RESTARTS AGE
backend-api-78597b8bd5-fnjj5 1/1 Running 0 2m26s
backend-api-78597b8bd5-lz56m 1/1 Running 0 2m26s
backend-api-78597b8bd5-stlx5 1/1 Running 0 2m26s
cluster3-controlplane ~ ➜ k get deployments.apps backend-api -o yaml
apiVersion: apps/v1
kind: Deployment
metadata:
annotations:
deployment.kubernetes.io/revision: "1"
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{},"name":"backend-api","namespace":"default"},"spec":{"replicas":3,"selector":{"matchLabels":{"app":"backend-api"}},"template":{"metadata":{"labels":{"app":"backend-api"}},"spec":{"containers":[{"image":"nginx","name":"backend-api","resources":{"limits":{"cpu":"150m","memory":"150Mi"},"requests":{"cpu":"100m","memory":"128Mi"}}}]}}}}
creationTimestamp: "2025-04-23T22:45:08Z"
generation: 2
name: backend-api
namespace: default
resourceVersion: "2246"
uid: 7d66dcf7-4a0b-4f83-b826-ed111fb58d6f
spec:
progressDeadlineSeconds: 600
replicas: 3
revisionHistoryLimit: 10
selector:
matchLabels:
app: backend-api
strategy:
rollingUpdate:
maxSurge: 25%
maxUnavailable: 25%
type: RollingUpdate
template:
metadata:
creationTimestamp: null
labels:
app: backend-api
spec:
containers:
- image: nginx
imagePullPolicy: Always
name: backend-api
resources:
limits:
cpu: 150m
memory: 150Mi
requests:
cpu: 100m
memory: 80Mi
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
dnsPolicy: ClusterFirst
restartPolicy: Always
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 30
status:
availableReplicas: 3
conditions:
- lastTransitionTime: "2025-04-23T22:46:09Z"
lastUpdateTime: "2025-04-23T22:46:09Z"
message: Deployment has minimum availability.
reason: MinimumReplicasAvailable
status: "True"
type: Available
- lastTransitionTime: "2025-04-23T22:45:08Z"
lastUpdateTime: "2025-04-23T22:46:09Z"
message: ReplicaSet "backend-api-78597b8bd5" has successfully progressed.
reason: NewReplicaSetAvailable
status: "True"
type: Progressing
observedGeneration: 2
readyReplicas: 3
replicas: 3
updatedReplicas: 3
cluster3-controlplane ~ ➜
@rob_kodekloud @Alistair_KodeKloud @Santosh_KodeKloud
Please I am still awaiting clarification for this.
Alright closing this thread. The video solutions for the CKA series Mock Exam was posted today and the video did not change the cpu requests as well. That confirms what I did was right.
Thank you. @Santosh_KodeKloud
Hi @olakunlecrown28 @Santosh_KodeKloud,
I did following steps but still not able to fix the issue. Kindly assist. Thanks !
cluster3-controlplane ~ ➜ k get pods
NAME READY STATUS RESTARTS AGE
backend-api-6b6454f5cf-lcssm 1/1 Running 0 2m33s
backend-api-6b6454f5cf-nt6kx 1/1 Running 0 2m33s
cluster3-controlplane ~ ➜ k get deployments
NAME READY UP-TO-DATE AVAILABLE AGE
backend-api 2/3 2 2 2m39s
cluster3-controlplane ~ ➜ k get events | grep -i "error" | tail -2
2m45s Warning FailedCreate replicaset/backend-api-6b6454f5cf Error creating: pods "backend-api-6b6454f5cf-tlj2d" is forbidden: exceeded quota: cpu-mem-quota, requested: requests.memory=128Mi, used: requests.memory=256Mi, limited: requests.memory=300Mi
2m36s Warning FailedCreate replicaset/backend-api-6b6454f5cf (combined from similar events): Error creating: pods "backend-api-6b6454f5cf-q9cnl" is forbidden: exceeded quota: cpu-mem-quota, requested: requests.memory=128Mi, used: requests.memory=256Mi, limited: requests.memory=300Mi
cluster3-controlplane ~ ➜ k edit deployments.apps
deployment.apps/backend-api edited
cluster3-controlplane ~ ➜ k get deployments.apps backend-api -o yaml | grep -i -A6 "resources:"
resources:
limits:
cpu: 150m
memory: 150Mi
requests:
cpu: 100m
memory: 80Mi <=Changed this from 128Mi to 80Mi`
cluster3-controlplane ~ ➜ k get pods
NAME READY STATUS RESTARTS AGE
backend-api-6b6454f5cf-lcssm 1/1 Running 0 4m31s
backend-api-6b6454f5cf-nt6kx 1/1 Running 0 4m31s
cluster3-controlplane ~ ➜ k get deployments.apps
NAME READY UP-TO-DATE AVAILABLE AGE
backend-api 2/3 0 2 4m36s
cluster3-controlplane ~ ➜ k get replicasets
NAME DESIRED CURRENT READY AGE
backend-api-6b6454f5cf 3 2 2 4m45s
backend-api-78597b8bd5 1 0 0 71s
cluster3-controlplane ~ ➜ k get replicasets --sort-by='{.metadata.creationTimestamp}'
NAME DESIRED CURRENT READY AGE
backend-api-6b6454f5cf 3 2 2 9m3s
backend-api-78597b8bd5 1 0 0 5m29s
Solution also mentions to delete the replicasets. I am not sure which replicaset to be deleted.
Kindly assist.
Thanks
Even after deleting the old replicaset , all the pods not running and old replicaset backend-api-78597b8bd5 still exists.
cluster3-controlplane ~ ➜ k get replicasets.apps --sort-by='{.metadata.creationTimestamp}'
NAME DESIRED CURRENT READY AGE
backend-api-6b6454f5cf 3 2 2 58m
backend-api-78597b8bd5 1 0 0 78s
cluster3-controlplane ~ ➜ k delete replicaset --force backend-api-78597b8bd5
Warning: Immediate deletion does not wait for confirmation that the running resource has been terminated. The resource may continue to run on the cluster indefinitely.
replicaset.apps "backend-api-78597b8bd5" force deleted
cluster3-controlplane ~ ➜ k delete pod -l app=backend-api
pod "backend-api-6b6454f5cf-86hn6" deleted
pod "backend-api-6b6454f5cf-mts2m" deleted
cluster3-controlplane ~ ➜ k get pods --show-labels
NAME READY STATUS RESTARTS AGE LABELS
backend-api-6b6454f5cf-82xqv 1/1 Running 0 4s app=backend-api,pod-template-hash=6b6454f5cf
backend-api-6b6454f5cf-95tpn 1/1 Running 0 4s app=backend-api,pod-template-hash=6b6454f5cf
cluster3-controlplane ~ ➜ k get replicasets.apps --sort-by='{.metadata.creationTimestamp}'
NAME DESIRED CURRENT READY AGE
backend-api-6b6454f5cf 3 2 2 59m
backend-api-78597b8bd5 1 0 0 20s
Hi @olakunlecrown28 , Could you please let me know where are solutions to the questions posted ?
Thanks,
Sakshi
Hi @sakshibag80
I think you might need to log out and log back into your kodekloud learning account. Then select the CKA course. You should notice that there after all the mock exams, videos have been posted for the solution. On my end the solution video was titled: “Mock Exam-2: Step-by-step solutions”
Hi @olakunlecrown28 ,
Thanks for getting back. I think there is some confusion. I am referring to solutions for " Ultimate Certified Kubernetes Administrator (CKA) Mock Exam Series" but I think you are referring to the “CKA” course.
Thanks,
Sakshi
Ah! Gotcha. Just restarted on those. I’ll see if I notice the same thing on those tests.
Thanks for clarifying.
Hi @sakshibag80
I just went through the ultimate series. It appears it’s the exact same question with the exact same solution. So if you watch the solution on the CKA course, it might help.
Cheers.
1 Like
