100 days of DevOps days 67/68

tha · May 7, 2026, 5:19am

Hi there,
quick feedback on Lab 67. The App seems to expect a service named: redis-follower
After I created it to test the guestbook:

apiVersion: v1
kind: Service
metadata:
  labels:
    app: redis-slave
  name: redis-follower
spec:
  ports:
  - port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis-slave

The Guestbook worked, but the validation failed.

More importantly I am now on day 68. I tried to login to the Jenkins Server using the credentials provided on Nautilus unfortunately the login didn’t work. The link to the overview page wasn’t mentioned in the tasks, so maybe I am simply looking at the wrong place.

Kind regards

raymond.baoly · May 7, 2026, 7:21am

Hi @tha

Please refer to the solution and try again https://github.com/imShakil/100-Days-Of-DevOps-Challenge-KodeKloud/blob/main/days/067.md

MIQDAD · May 7, 2026, 7:36am

check out this solution if it helps

github.com

MiqdadProjects/kodekloud-eng-100-days-devops/blob/main/DAY67/Task-67-GuestbookDeployment.md

# 🌟 Task 67 - Deploy Guestbook Application with Redis and Frontend in Kubernetes

**📌 Task Description**

The **Nautilus Application development team** has developed a guestbook application to manage guest/visitor entries, which is ready for deployment on a Kubernetes cluster. The infrastructure includes a Redis master, Redis slave, and frontend tier, each with specific deployment and service configurations. The task involves creating these components and ensuring the guestbook application is accessible via a NodePort service.

**👉 Task Requirements**:
- **Redis Master Deployment (`redis-master`)**:
  - Replicas: `1`
  - Container:
    - Name: `master-redis-xfusion`
    - Image: `redis`
    - Resources: CPU request `100m`, Memory request `100Mi`
    - Port: `6379` (Redis default)
  - Labels: `app: redis-master` (for selector and template metadata)
- **Redis Master Service (`redis-master`)**:
  - Selector: `app: redis-master`
  - Port: `6379`
  - TargetPort: `6379`
  - Type: ClusterIP (default)

This file has been truncated. show original

tha · May 7, 2026, 7:40am

@raymond.baoly as mentioned, I am on day 68 now. But I cannot login to the Jenkins Server using ssh jenkins@jenkins with the password j@rv!s

As I had to raise a ticket anyway, I only wanted to mention the issue with lab 67 as well.

If you use:

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: redis-master
  name: redis-master
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis-master
  strategy: {}
  template:
    metadata:
      labels:
        app: redis-master
    spec:
      containers:
      - image: redis
        name: master-redis-devops
        resources:
          requests:
            cpu: 100m
            memory: 100Mi
        ports:
          - containerPort: 6379
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: redis-slave
  name: redis-slave
spec:
  replicas: 2
  selector:
    matchLabels:
      app: redis-slave
  strategy: {}
  template:
    metadata:
      labels:
        app: redis-slave
    spec:
      containers:
      - image: gcr.io/google_samples/gb-redisslave:v3
        name: slave-redis-devops
        resources:
          requests:
            cpu: 100m
            memory: 100Mi
        env:
          - name: GET_HOSTS_FROM
            value: dns
        ports:
        - containerPort: 6379
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: frontend
  name: frontend
spec:
  replicas: 3
  selector:
    matchLabels:
      app: frontend
  strategy: {}
  template:
    metadata:
      labels:
        app: frontend
    spec:
      containers:
      - image: gcr.io/google-samples/gb-frontend@sha256:a908df8486ff66f2c4daa0d3d8a2fa09846a1fc8efd65649c0109695c7c5cbff
        name: php-redis-devops
        resources:
          requests:
            cpu: 100m
            memory: 100Mi
        env:
          - name: GET_HOSTS_FROM
            value: dns
        ports:
          - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: redis-master
  name: redis-master
spec:
  ports:
  - port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis-master
status:
  loadBalancer: {}
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: redis-slave
  name: redis-slave
spec:
  ports:
  - port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis-slave
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: frontend
  name: frontend
spec:
  type: NodePort
  ports:
  - port: 80
    protocol: TCP
    targetPort: 80
    nodePort: 30009
  selector:
    app: frontend

it’s raising an error (Browser Web Console, stating that it cannot resolve redis-follower) and you cannot post anything on the guestbook.
When adding:

apiVersion: v1
kind: Service
metadata:
  labels:
    app: redis-slave
  name: redis-follower
spec:
  ports:
  - port: 6379
    protocol: TCP
    targetPort: 6379
  selector:
    app: redis-slave

the guestbook was working just fine, but I had a validation error the redis-master service would not be named redis-master. Without the addition (but a not working guestbook) it validated just fine.

raymond.baoly · May 7, 2026, 7:58am

Hi @tha

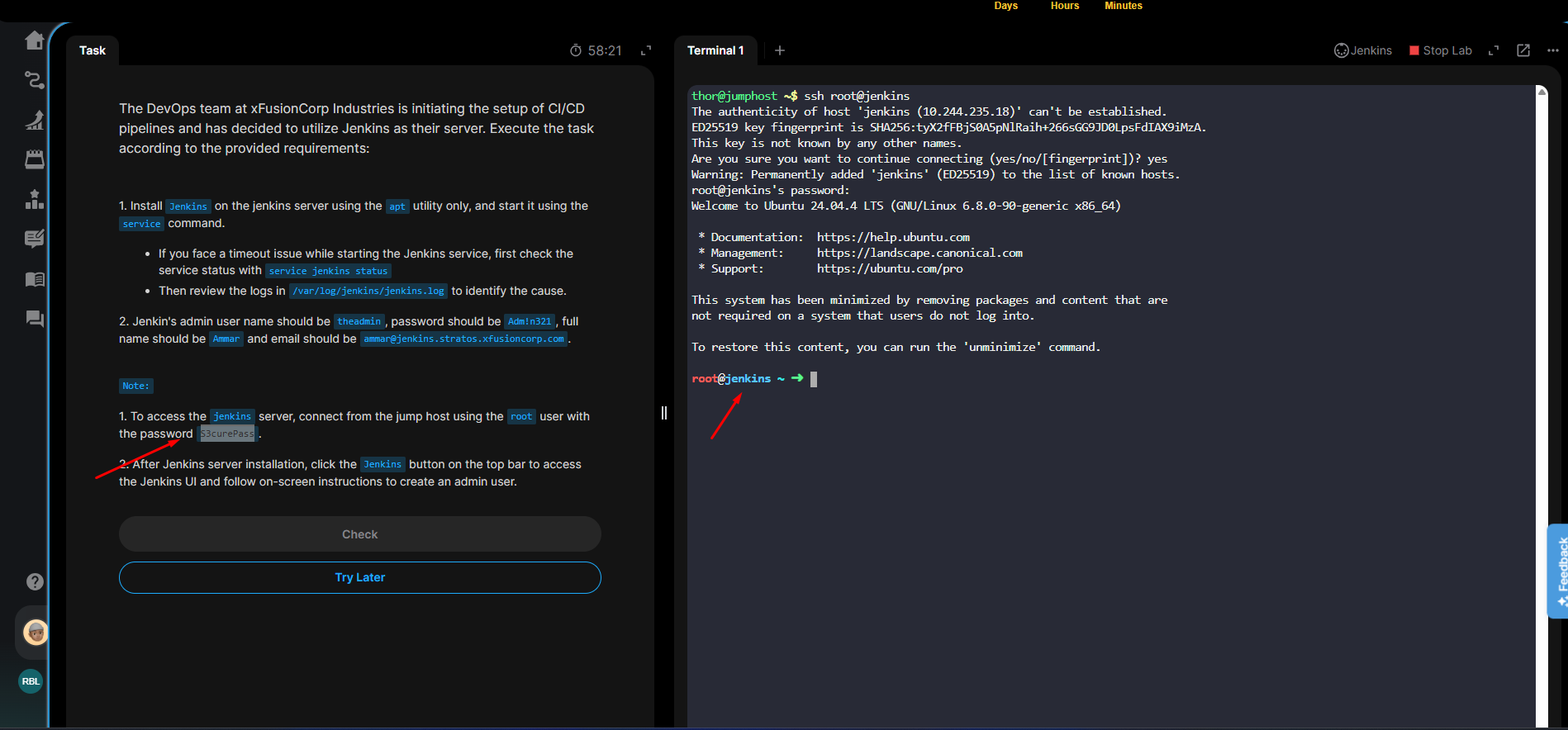

Please read the notes in Day 68. There is information about accessing the Jenkins server.

raymond.baoly · May 7, 2026, 8:03am

Hi @tha

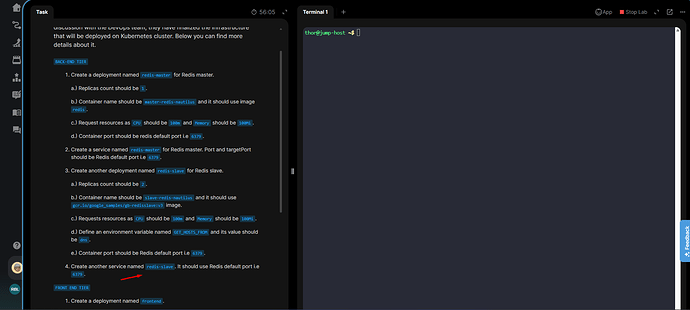

About Day 67, you used the incorrect service name. It should be redis-slave , not redis-follower .

tha · May 7, 2026, 8:16am

@raymond.baoly I created BOTH services. One to satisfy the task and one to satisfy the guestbook. Didn’t work out well, but for me being able to post something was the strongest indicator, that everything else was setup correctly.

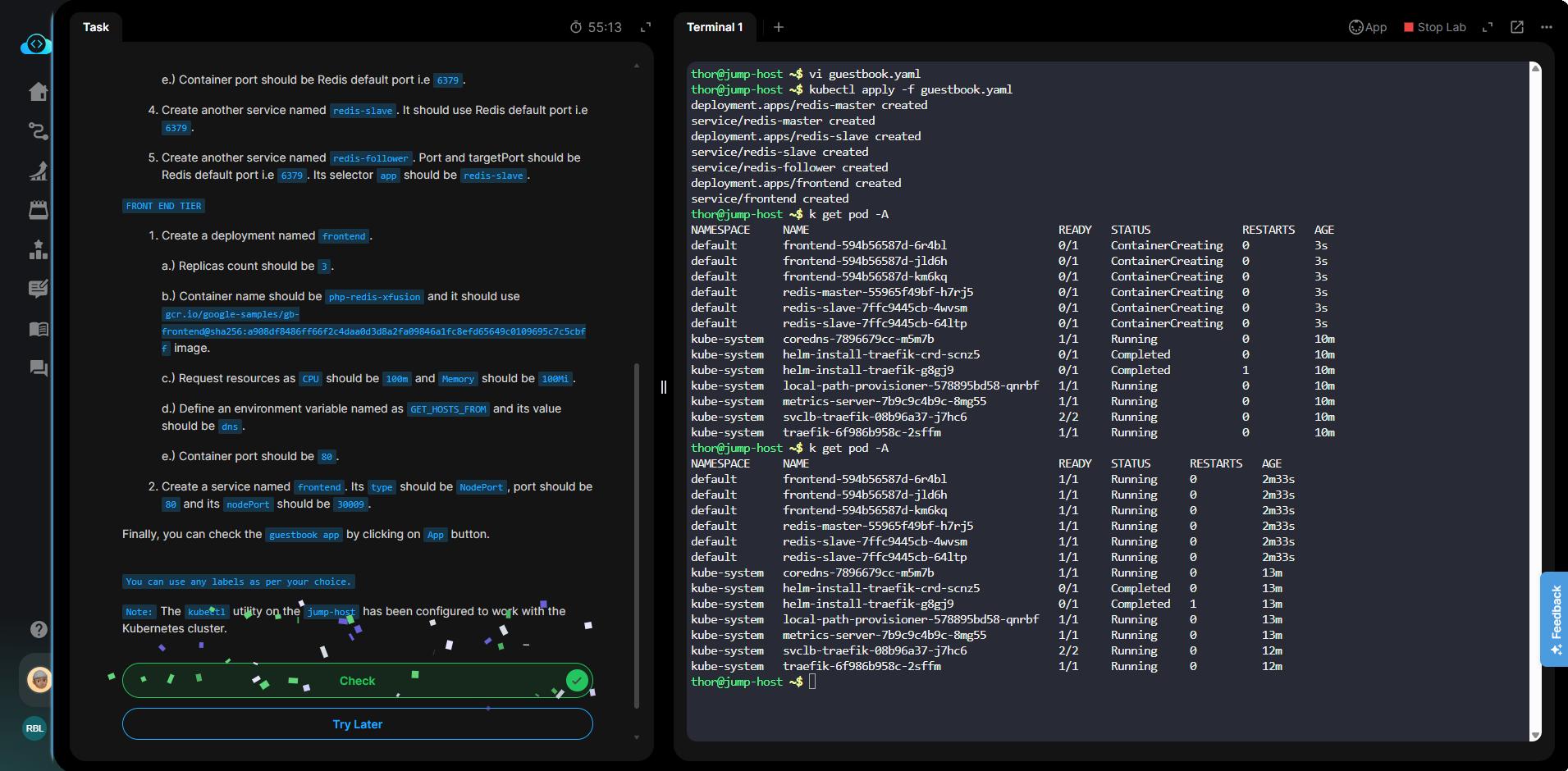

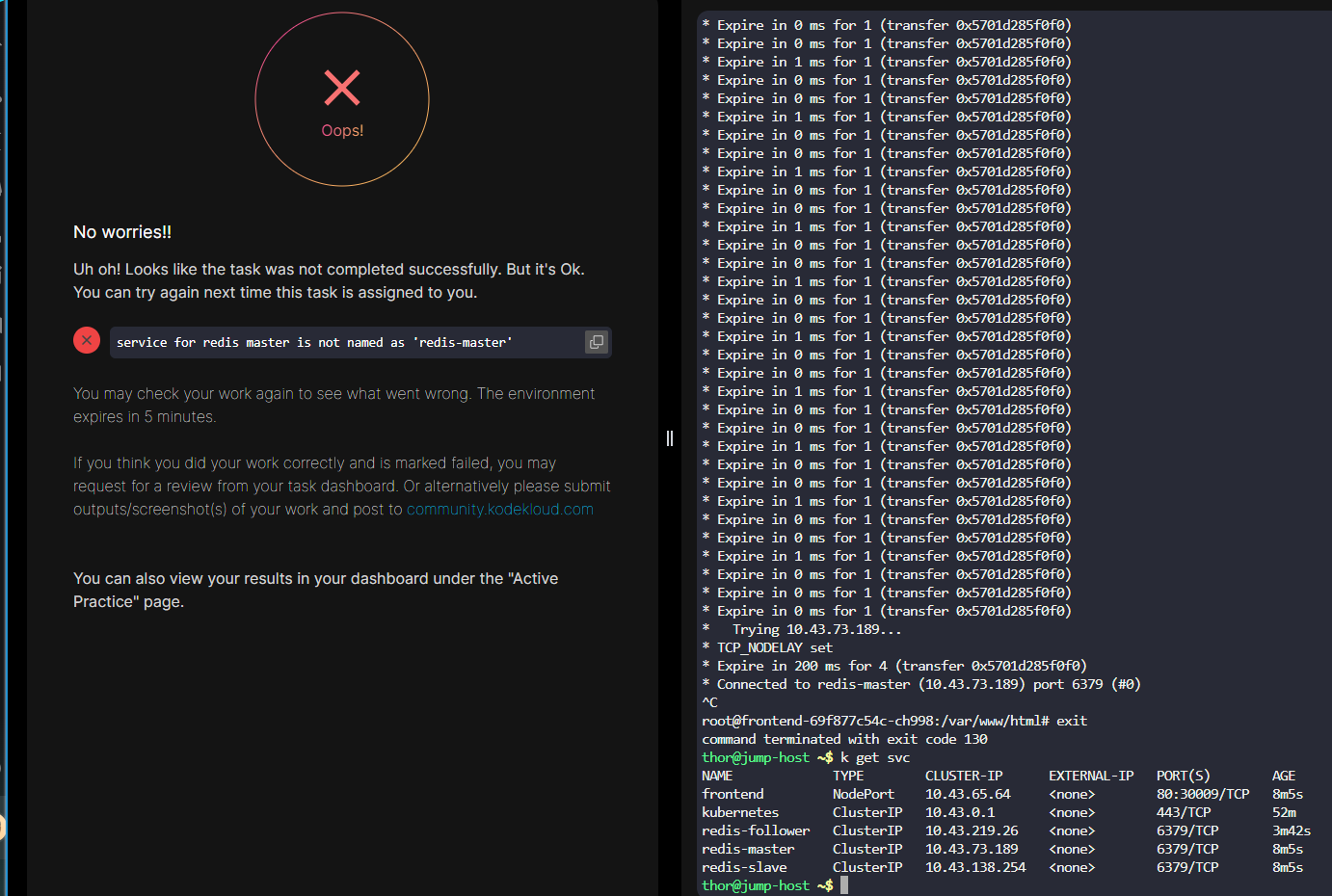

I just found a screenshot I had taken:

Regarding day 68 thanks I guess doing the tasks during the first coffee isn’t always a good idea. It worked.

raymond.baoly · May 7, 2026, 9:05am

Hi @tha

I’ve just checked it, and it’s working properly on my end. Could you please try again and only create the required resources?

tha · May 7, 2026, 9:30am

@raymond.baoly unfortunately I don’t see an option to restart a finished lab.
Were you able to POST a comment on the guestbook with the required resources?

tha · May 7, 2026, 10:39am

The official page for the container used also states, that the hostnames should be redis-follower and actually redis-leader:

The manifest file specifies the environment variable GET_HOSTS_FROM=dns . When you provide the configuration to the web frontend application, the frontend application uses the hostnames redis-follower and redis-leader to performs a DNS lookup. The DNS lookup finds the IP addresses of the Services you created in the previous steps. This concept is called DNS service discovery.

raymond.baoly · May 8, 2026, 4:15am

I don’t understand. Could you please explain more and share a screenshot?

tha · May 9, 2026, 7:23am

Well, it’s a guestbook.

Maybe it’s not necessary to solve the task, but some people such as me, are actually testing an application to make sure that it’s working. So I tried to create an entry on the guestbook.
That’s how I actually got to the idea to check why it’s not working and noticed that the service should be named differently.

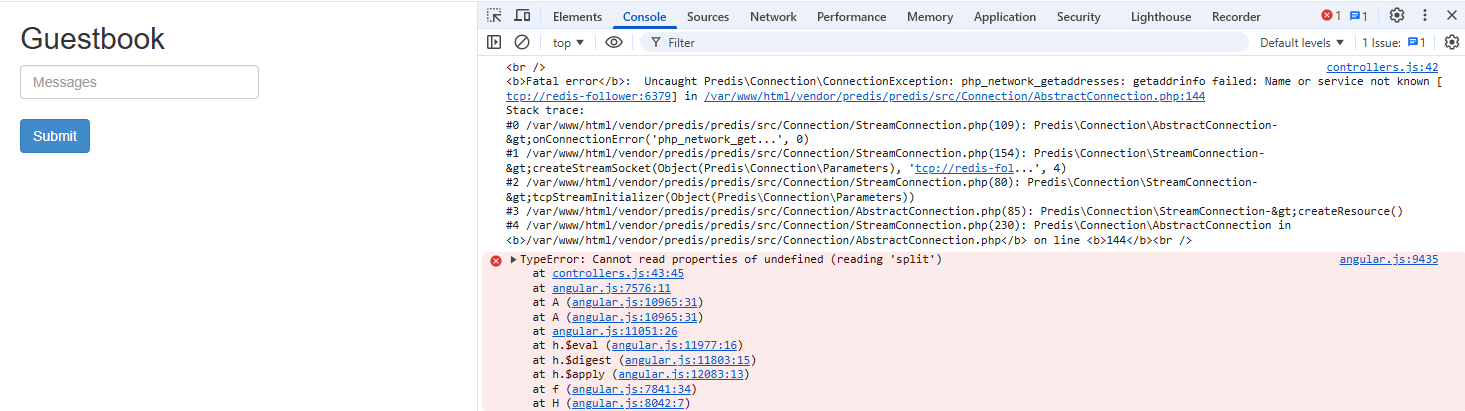

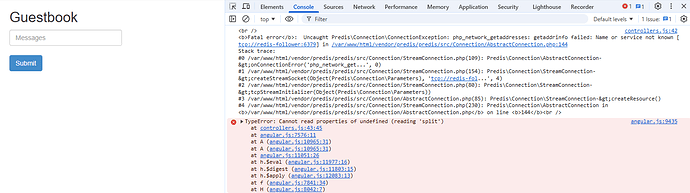

Without the redis-follower service it looks like this:

And the submit button doesn’t work.

raymond.baoly · May 10, 2026, 10:49am

Hi @tha

I understand. Let me inform the team to check it and update it correctly.
